Choose right signal booster to enhance signal receipt of network operator in Europe
In Europe, the main network operators, or we say telecommunication providers are the following list: Orange, Vodafone, SFR, O2, EE, Telekom, Three and other local companies.
During these network carriers, the users of Orange, Vodafone, O2 are with the largest proportion in Europe. But except to these companies we just mentioned, there are so many others local companies in different countries, like Telia in Sweden, Turkcell in Turkey, TriMob in Ukraine…
As you see, in your places in Europe, there are such much network carriers for your choice, therefore you are probably using more than one kind of them or you and your friends or family are using the different service.
For example, when you are using Vodafone with 2G 3G 4G, meanwhile your second sim card is of O2 with 2G 3G 4G, now you may meet some problem, that in the same place, the receipt of 4G Claro is full bar but the receipt of 4G Movistar is weak. This situation is caused by the different frequency bands of these two network operators and the difference of distance from base towers.
So, to strengthen the weak signal receipt of the mobile network operator, we need to choose cell phone signal booster matched the right frequency bands.
But how we can confirm the right frequency bands of our mobile network operators? In the following chart, are the normal companies and their operating band for reference.
The frequency bands of the mobile network operators in Europe
|
Network Carrier |
Network Type |
Operating Band |
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B1 (2100), B3 (1800), B7 (2600), B20 (800) |
|
|
2G |
B3 (1800), B8 (900) |
|
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B3 (1800) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B1 (2100), B3 (1800), B7 (2600), B20 (800), B38 (TDD 2600) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100) |
|
|
4G |
B7 (2600), B20 (800) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100) |
|
|
4G |
B3 (1800), B7 (2600), B8 (900), B20 (800), B28a (700), B32 (1500) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B1 (2100), B3 (1800), B20 (800), B40 (TDD 2300) |
|
|
|
2G |
B3 (1800) |
|
3G |
B1 (2100) |
|
|
4G |
B3 (1800), B7 (2600), B20 (800) |
|
|
|
2G |
B3 (1800), B8 (900) |
|
3G |
B1 (2100), B8 (900) |
|
|
4G |
B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28a (700) |
According to the info of the chart, we can find out that the most normal frequency bands of network carriers in Europe are B8(900), B1(2100), B3(1800), B20(800) and B7(2600).
If we still didn’t mention about the information of the network operators that you are using, there is a website to check the frequency of the world: www.frequencycheck.com.
But in different countries, even same company, the frequency bands could be different, so how we can get the correct frequency bands info of these network operators? Here we can supply you some methods to check the frequency info of the mobile network operator that you are using:
1.Call to the mobile network carriers’ company and ask them to check it for you directly.
2.For Android System: Download the mobile phone APP “Cellular-Z” to check the info.
3.For iOS System: Dial “*3001#12345#*” by phone → Tap “Serving Cell Info” → Tap the “Freq Band Indicator” and check it out.
Attention: note or mark down the info and tell it to the sales team of Lintratek, so that we can recommend you the most suitable model for you matching your situation.
Lintratek has more than 10-year experience of supplying network solution and relevant device for users from the whole world, here we have some selection of full kit cell phone signal amplifier for you.
|
Optional Combination |
Full Kit Content |
Coverage |
Band Frequency |
AGC Function |
Network Carriers |
|
|

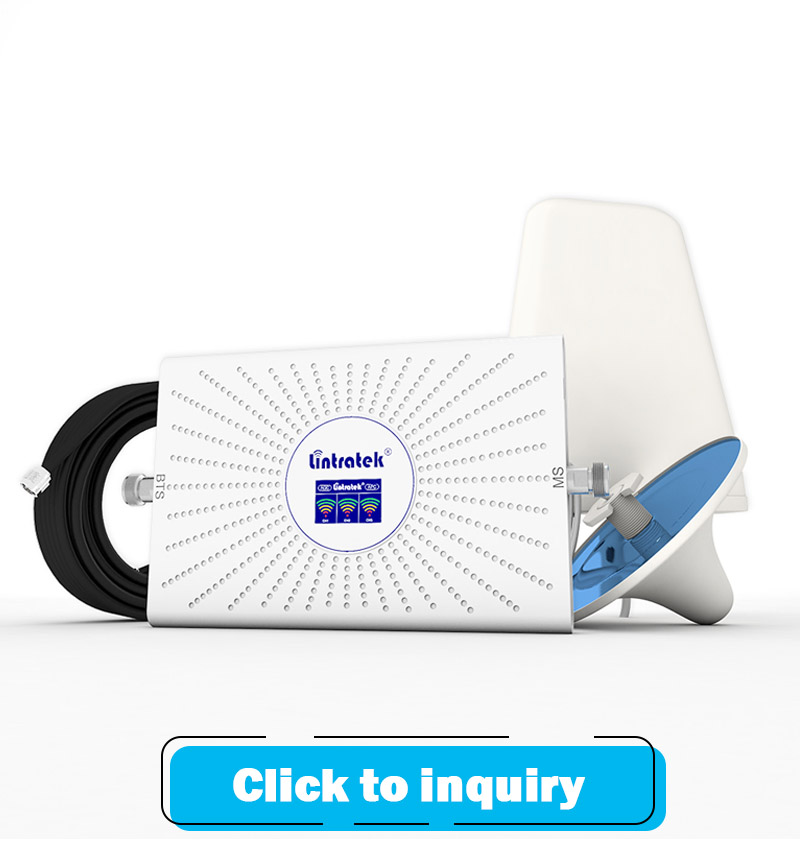

AA23 tri band*1 LPDA antenna*1 Ceiling antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
300-400sqm |
B5+B8+B3 √ B8+B3+B1 √ B8+B3+B20 √ |
YES |
|
|
|
KW20L quad band*1 LPDA antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
400-600sqm |
B5+B8+B3+B1 √ B8+B3+B1+B20 √ B8+B3+B1+B7 √ B8+B3+B1+B28 √ |
YES |
|
|
|
KW20L five band*1 Yagi antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
400-600sqm |
B8+B3+B1+B28+B7 √B8+B3+B1+B20+B7 √ |
YES |
|
|
|
KW23F tri band*1 LPDA antenna*1 Ceiling antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
1000-3000sqm |
B5+B3+B1 √ B5+B8+B3 √ B8+B3+B1 √ B8+B1+B7 √ B3+B1+B7 √ |
AGC+MGC |
In the product list, we show you some feature models of multi-band signal repeaters, including tri-band repeater, quad-band repeater and even penta-band repeater. If you are interested in them, please click the cotton of the products’ pic for more details, or you can contact us directly to inquire about suitable network solutions. We will provide you whole service with low price. We also have many other different designs here we still haven’t mention, pls click here to download our product catalog.
If you would like to customize a special frequency band to meet your local market needs, please contact the Lintratek sales team for information and discounts. Lintratek has over 10 years of experience as a manufacturer of telecommunications products such as signal amplifiers and booster antennas. We have our own R&D lab and warehouse to supply you with the best OEM and ODM services in the telecommunication industry.
