700mhz 2600mhz LTE Cell Phone Signal Booster Quad Band 4 Band GSM UMTS Signal Amplifier

Short Description:

Lintratek supplies Quad band KW20L Cellphone Gsm Mobile Signal Booster AGC 70dbi Hot sales in Europe and America.

Customized service: OEM&ODM

Main specification: 70dbi high gain, 20dbm output, 4 channels (4 bands) for boosting signal

Hot sales model: KW20L-GDWL, KW20L-LCPA

Size: 247*138*28mm, 0.98kgs

Logistics: 7-15 days by DHL / FedEx / UPS (or others choice)

We supply OEM&ODM Service

Return Within 30 Days!

One-Year Guarantee & Life-Long Maintenance !

Send Inquiry

Product Detail

Product Tags

700mhz 2600mhz LTE Cell Phone Signal Booster Quad Band 4 Band GSM UMTS Signal Amplifier,
Cell Phone Signal Booster,

KW20L Quad Band Mobile Cell Phone Signal Booster

Inquiry

Feature of KW20L Quad Band Repeater

70dbi high gain

Get better signal receipt

Boost 3 frequency bands

At the same time

20dbm Output Power

Cover much more areas

Up to 1000 SQM

Connect 3 ceiling antennas

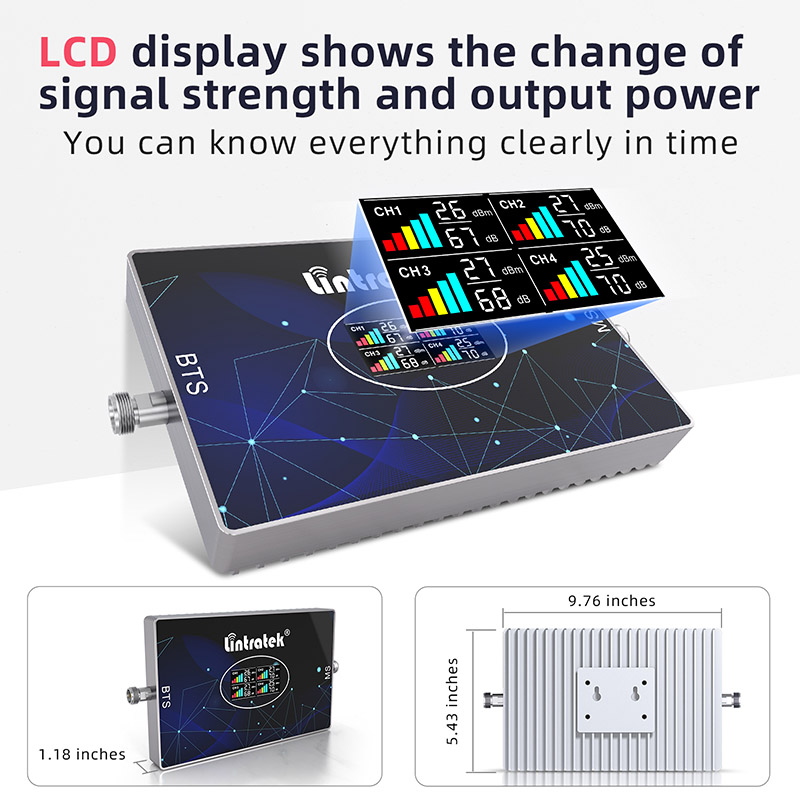

Lintratek KW20L quad band repeater

Specification of Quad band KW20L Cellphone Gsm Mobile Signal Booster

Frequency Range	Frequency	Frequency range (mhz)
	CDMA+PCS+AWS+LTE	850+1900+1700+700
	GSM+DCS+WCDMA+LTE	900+1800+2100+700
	CDMA+DCS+WCDMA+LTE	850+1800+2100+2600
	CDMA+GSM+DCS+WCDMA	850+900+1800+2100
Output Power		20±2dBm
Gain		70±2dBi
Ripple in Band		≤6dB
Speurious Emission	9KHz-1GHz	≤-36dBm
	1GHz-12.75GHz	≤-30dBm
Intermodulation Product	9KHz-1GHz	≤-36dBm
	1GHz-12.75GHz	≤-30dBm

Multiple device support

As the device uses SIM card, KW20L quad band signal booster can help boost your mobile signal with 4 different channels

Much bigger Coverage

With 70dbi gain and 20dbm output, KW20L quad band repeater can solve network problem with 1000sqm coverage

One for 3 antennas

To apply in some place with 2-3 floors, KW20L quad band can connect with 2-3 indoor antennas, more convenient and flexible

Lintratek KW20L quad band repeater

11 year telecommunication manufacturer Lintratek

● 11 year of R&D manufacturing&selling

● High tech advanced testing&producing equip.

● Supply OEM&ODM service with discount

● One-stop purchase for full plan network solution

● Fast efficient logistics and transportation

Check more about Lintratek

Lintratek supplies 700mhz 2600mhz LTE Cell Phone Signal Booster Quad Band 4 Band GSM UMTS Signal Amplifier as sample for wholesales in Colombia, Argentina, Chile and other South American countries.
Cover B2 B4 B5 B7/B28 (850+1900+1700+2600/700mhz) for boosting frequency band of Movistar, FLOW, Digicel, personal or tigo.
Lintratek signal amplifier support OEM ODM customized service with more than 20-year telecommunication industry experience.
