KW20C tri band cell signal booster 4G network Vodafone AT&T signal boosting for home 500sqm coverage

Short Description:

Lintratek supplies KW20C tri band cell signal booster 4G network Vodafone AT&T signal boosting for home 500sqm coverage. The KW20C triple band series booster is our classic series. The white and simple body and colorful display can let customers to see the strength of the current signal at a glance. The main production models are KW20C-CGD, KW20C-CGW, KW20C-GDW, KW20C-CPA, KW20C-GWL, KW20C-GDL, and KW20C-DWL, hot-sales in Cambodia, Russia, Saudi Arabia, the UAE, Colombia, Ecuador and other countries.


We supply OEM&ODM Service

Return Within 30 Days!

One-Year Guarantee & Life-Long Maintenance !

Product Detail

Product Tags

Product Introduction of KW20C tri band cell signal booster

content of full kit KW20C tri band cell signal booster

Our KW20C tri band cell signal booster ‘s output power is 20dBm, and the gain is 65 dBi. It can also boost 2G 3G and 4G mobile network at the same time, and it has a wealth of frequency band arrangement, which can basically meet the global 2G 3G and 4G networks. You must be curious about its working principle!

One set of KW20C triple band series booster contains at least one signal booster, an outdoor LPDA antenna, an indoor ceiling antenna with 2 -meter wire, and 1 piece 15 meters cable.

KW20C tri band cell-signal booster

Product Parameter (Specification) of KW20C tri band cell signal booster

Feature

Triple band home use cell signal booster

Outlook Design

White metal or color customized with LCD display screen

Size

234*182*22mm, 0.99kgs

Package Size

310*210*55mm, 1.28kgs

Supporting Frequency

GSM+DCS+WCDMA (B8+B3+B1) 900+1800+2100MHZ;

CDMA+GSM+DCS (B5+B8+B3) 850+900+1800MHZ;

CDMA+PCS+LTE (B5+B2+B7) 850+1900+2600MHZ;

CDMA+PCS+AWS (B5+B2+B4) 850+1900+1700MHZ;

CDMA+PCS+LTE (B5+B2+B28) 850+1900+700MHZ;

LTE+GSM+DCS (B20+B8+B3) 800+900+1800MHZ

Max Coverage

600sqm

Output Power

15±2dBm

20 ±2dBm

Gain

53 ±2 dB

65±2dB

Ripple in Band

6dB

MTBF

50000 hours

Power Supply

AC100~240V, 50/ 60HzDC12V 1A

EU / UK / US standard

Power Consumption

< 5W

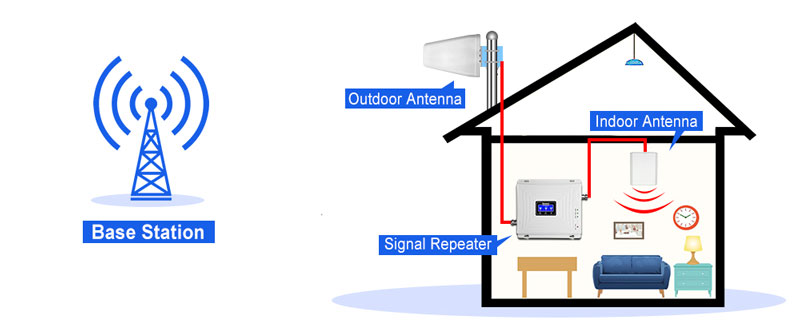

How does KW20C tri band cell signal booster work?

how does KW20C tri band cell signal booster work

Its working principle is the outdoor LPDA antenna receive mobile phone signals from the base station at first, and then mobile phone signal booster enhances the signal of the outdoor -to -digital antenna transmission, and then the indoor ceiling antenna or panel antenna has enhanced signal to the user's mobile phone to reach the zoom signal the goal of.

Product Feature & Application of the KW20C tri band cell signal booster

Kw20C triple band mobile phone signal amplifier can be used in multiple scenarios. It can be installed in Home Inns, bars, hotels, basements, wooden houses, RV and various places.

application of KW20C tri band cell signal booster

About installation scheme:

1. if you plan to use it to cover 200-300 square meters of houses or basements, when your mobile phone signal grid has 2-3 grids, you can install a kw20c tri band cell signal booster and connect two ceiling antennas with a two power divider to achieve the effect of covering 200-300 square meters.

2. if you plan to install it in a public place with an area of 400-600 square meters, such as a bar and a home stay, when the outdoor signal has a mobile signal strength of more than -100dbm, you can install a set of amplifier with 3-4 ceiling antennas to cover this area, so as to meet your use effect.

If you want to know more about the installation methods, please contact our Lintratek salesman. We are honored to serve you.

FAQ

1. how should I choose a suitable mobile phone signal amplifier?

First, please know what mobile networks you want to enlarge in your country, 2G, 3G and 4G;

Secondly, make sure that your mobile phone is outdoors and whether the signal grid reaches 1-2;

Finally, confirm the area you want to cover.

Please tell the above information to Linchuang salesperson, and then they will recommend you a suitable mobile phone signal amplifier



2. how do I get my goods?

After Linchuang salesperson receives the full payment from the customer, Linchuang salesperson will send the goods to the address designated by the customer by express. After the customer completes the local customs clearance procedures, the customer can get the goods



3. what is the payment method?

We support bank transfer, Western Union and paypal collection



4. why does the kw20c tri band series screen not light up?

① First, check whether the power supply is connected; Can the screen light up by changing another 12V 2A power supply?

② Then, whether the distance between the outdoor antenna and the indoor antenna exceeds 15m, and whether there is any barrier in the middle

③ Please send the videos and photos whose screen is not bright to the salesperson of Linchuang, and we will bring you professional solutions



5. cash on delivery acceptable?

Sorry, we don't accept cash as payment, we can only ship the goods after we receive the full payment from the customer
