Lintratek Digital 2G 4G 5G Fiber Optic Repeater 5W 10W 20W 40W MGC AGC Long-distance Transmission Commercial Digital Cellular Repeater for Office Building, Market, Hotel, Villa
We supply 5G digital fiber optic repeter series with single band, dual band and triple band mainly to cover frequency bands of CDMA, GSM, DCS,WCDMA and NR.
-Fiber optic transmission offers long distances and low attenuation.
-The direct coupling design requires no antenna isolation, allowing for high power output options of 5W, 10W, 20W, and 40W.
-Utilizes digital RF and digital optical transmission processing technologies.
-The device supports multi-operator, multi-band, and multi-mode combinations for 2G, 4G, and 5G, with independent amplification for each band, ensuring no interference.
-Features ALC (Automatic Level Control) and no-load protection functions, enhancing the safety and reliability of the device.
-High out-of-band rejection, ensuring no interference with other frequency bands.
-The enclosure is designed with excellent heat dissipation, providing waterproof, moisture-proof, and corrosion-resistant protection, making it suitable for outdoor all-weather operation.
|
5W/10W/20W/40W Fiber Optic Repeater |
Frequency Band |
Size |
Max Gain |
Output Power |
|
|
Single Band |
CDMA (B5) 850MHZ GSM (B8) 900MHZ DCS (B3) 1800MHZ |
375*300*142mm 10kg |
5W: 95dbi 10W: 100dbi 20W: 105dbi |
5W: 37dbm 10W: 40dbm 20W: 43dbm 40W：46dbm |
|
|
Dual Band |
GSM+CDMA 900+1800MHZ LTE+NR 2600+3500MHZ |
430*340*180mm 18kg |
|||
|
Triple Band |
GSM+DCS+WCDMA+LTE+NR 900+1800+2100+2600+3500MHZ |
500*400*260mm 30kg |
|||

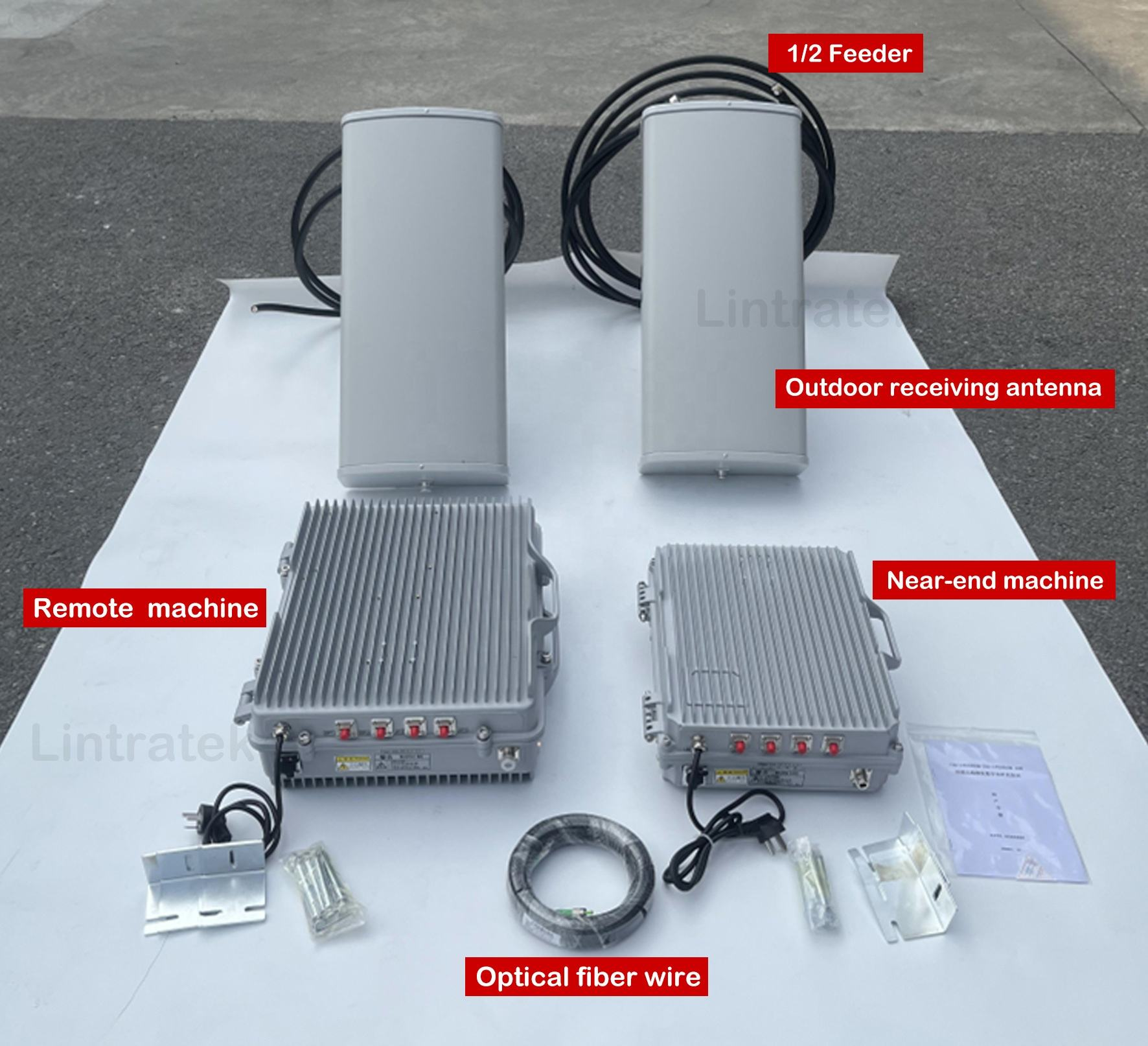

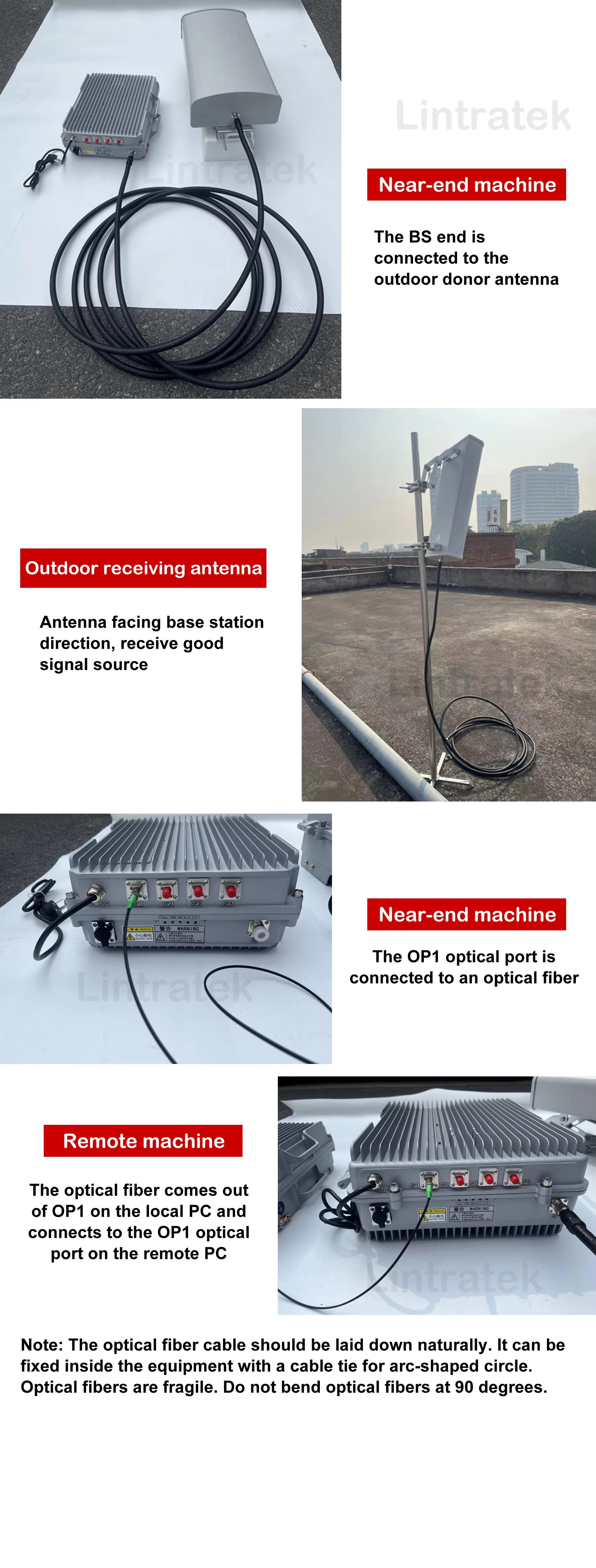

The device of Fiber optic repeater is composed with two parts, donor repeater (or we say host booster) and remote repeater (line booster).
1. The donor repeater is installed in the place where close to base station or places with strong signal.

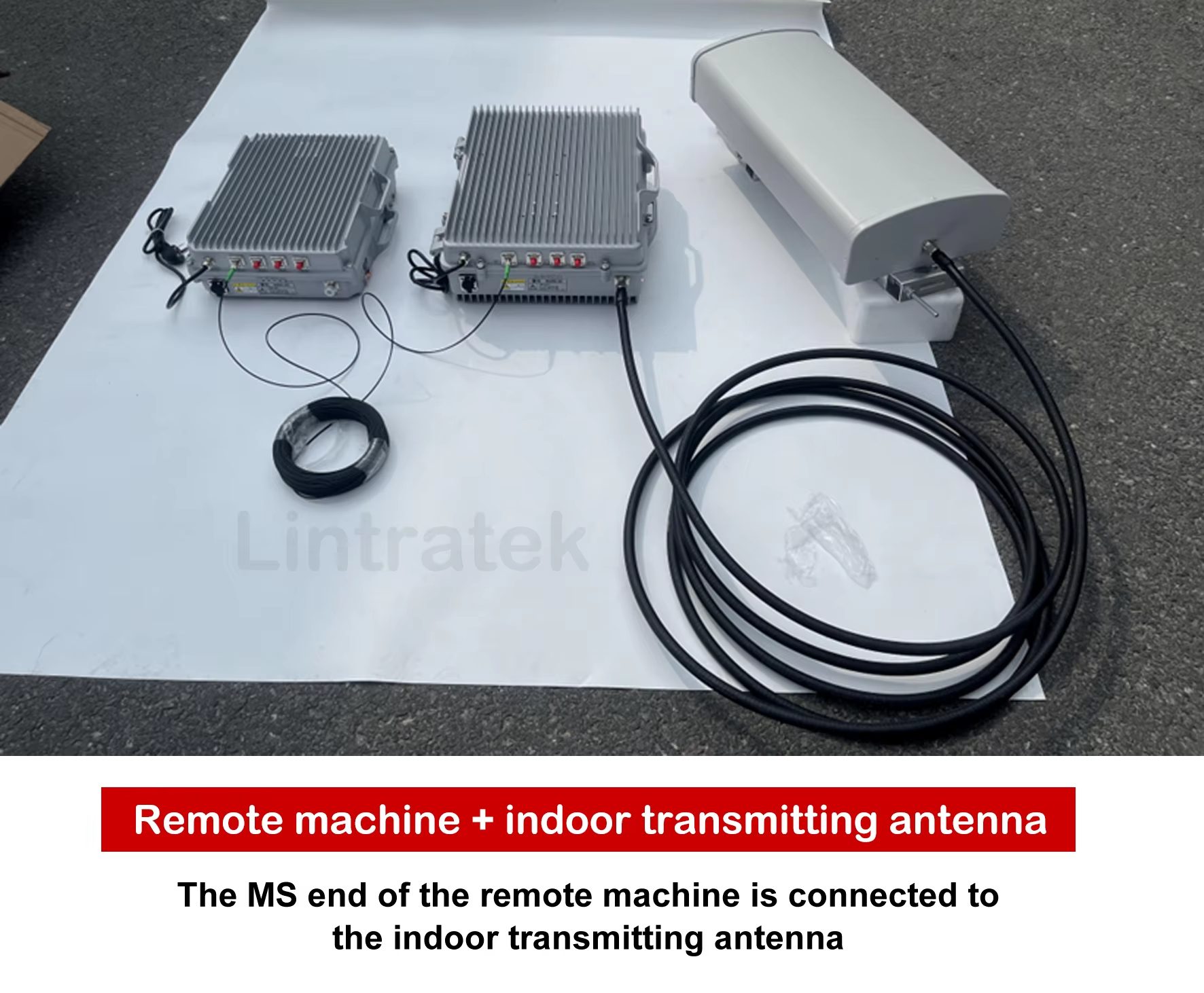

2. And remote repeater is installed in the place where you need for signal coverage.
Both of the two parts need to link with antennas for receiving and sending.
Between the two parts is linked by fiber cable, which is low loss and it can make sure the distance can be as long as 30km.
One donor repeater can be connected with one or more than one piece of
The frequency of Lintratek Fiber optic repeater can be customized according to different areas and different needs.
In American countries, the frequency 850mhz 1900mhz 1700mhz is widely used, but you can also customize 700mhz 800mhz 2600mhz according to the frequency used in your areas.
In countries of Asia, Europe, Africa, the most widely used frequencies are 900mhz 1800mhz and 2100mhz, but you can also customize TDD1900MHZ, TDD2300mhz ,800mhz, 2600mhz, etc.
Fiber repeater is most widely used in countryside, mountain areas, village and multi tall buildings. It can be used for both indoor and outside.
For indoor use, you can link with multi indoor antennas for multi floors or rooms. For outdoor use, you can link with big plate antennas for outdoor coverage.
Lintratek has more than 13 years of supplying network solution with full plan of installation to our client home and abroad. Here we have some successful case shared with you. Click here to check more.
- 1. How long distance it can cover?
For different power and different situation, the distance is not the same, but normally for 5w one can cover about 1km ,10w one can cover about 2km, 20w one can cover about 5km.
- 2. Can I customize the frequency?
Yes, frequency can be customized, you can tell me the frequency you need and we can do it for you.
- 3. How many years warranty of it?
We warranty for two years and free for repairing all life.
- 4. Can it be solar powered?
Yes, we can make it solar powered or AC power directly.
- 5. How much can the maximum power do?
The maximum power we can do for now is 20w. More powerful one still under developing
