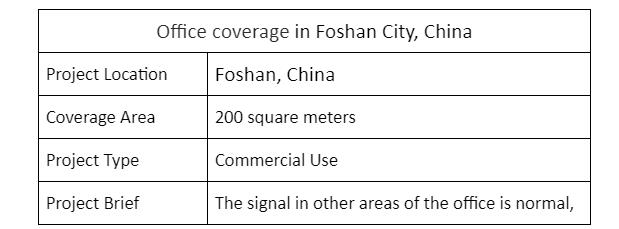

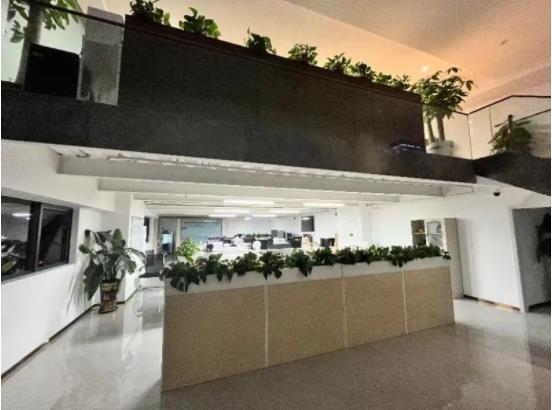

The project is located in the office building of an industrial park in Shunde District, Foshan City. The overall signal of the office building is good, except for an area of 200 square meters on the second floor.The top of this area is an alloy roof panel, and the metal material will block the transmission of signals, and the signal transmission is blocked by many walls and small space.
Design scheme

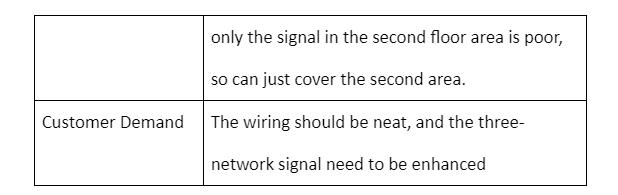

The project leader put forward three requirements:
1. signal coverage overall wiring should be neat.
2. Only need to cover the area of 200 square meters.
3. Signals from the mobile, telecommunications and China Unicom networks should be enhanced.
According to the needs of customers, we selected the all-netcom repeater with TDD band and selected the wall hanging antenna for receiving and transmitting. The wall hanging antenna can be perfectly integrated into the decoration environment.
Product collocation scheme

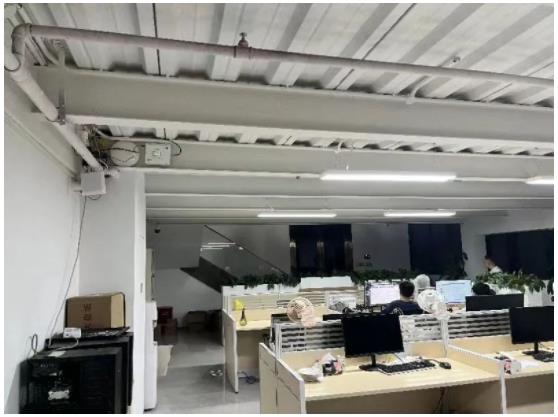

Installation Site
1.The outdoor wall mounted antenna has a strong directivity, and it should be faced with the base station when installing;
2. The indoor wall mounted antenna faces the signal coverage area. After the indoor and outdoor antennas are installed, connect the repeater to power on.
3. Signal detectionAfter installation, the project leader made a phone call/Internet test signal, and the phone and Internet function were normal. Android phones can download the ”CellularZ” network measurement software, open the software to view the RSRP value, and accurately understand the signal coverage effect.
(RSRP is the standard value for measuring whether the signal is smooth, generally speaking, it is very smooth above -80dBm, and there is basically no network below -110dBm)
