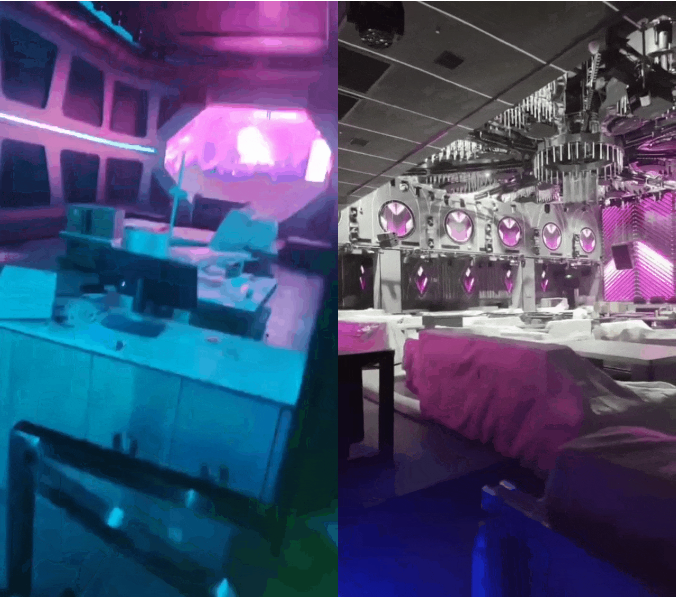

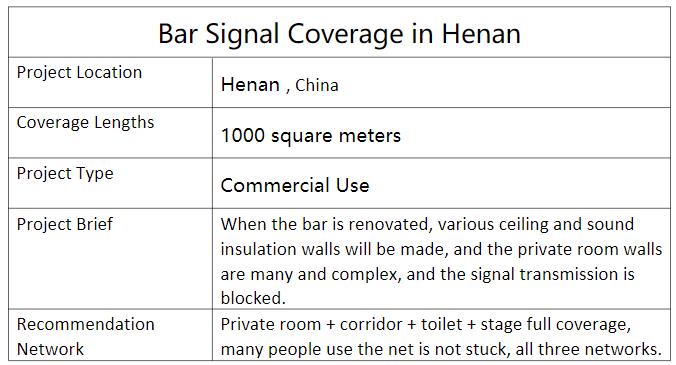

Project Analysis

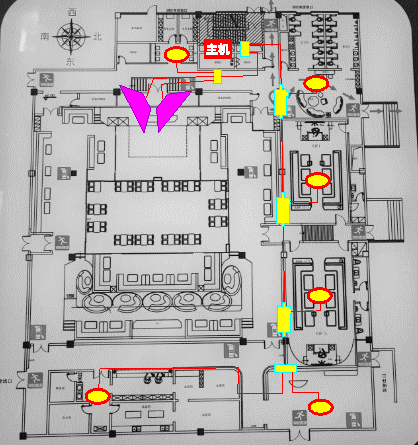

Design scheme
We took into account the long track of the bar, the host chose 35F-GDW wireless repeater (high-power host can make up for the loss of long-distance transmission), support three-frequency simultaneous enhancement, with logarithmic antenna, ceiling antenna and wall mounted antenna.

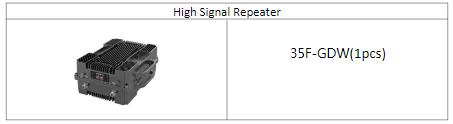

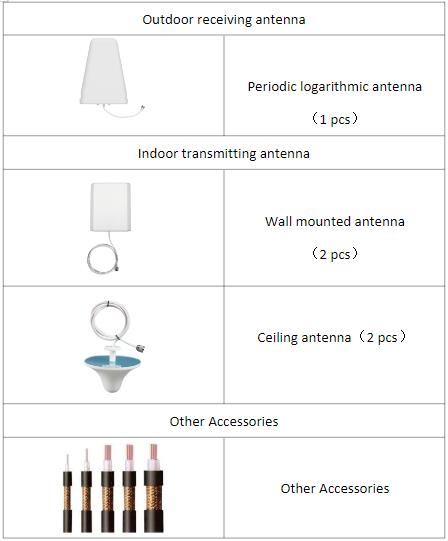

Product collocation scheme
Signal Repeater (5F-GDW) has upstream and downstream frequency band distribution design, eliminate signal transmission congestion, easily achieve 1000 people at the same time with the network, support custom frequency bands, 2/3/4/5G frequency bands at home and abroad can be customized, the coverage effect is more perfect.
Installation Process

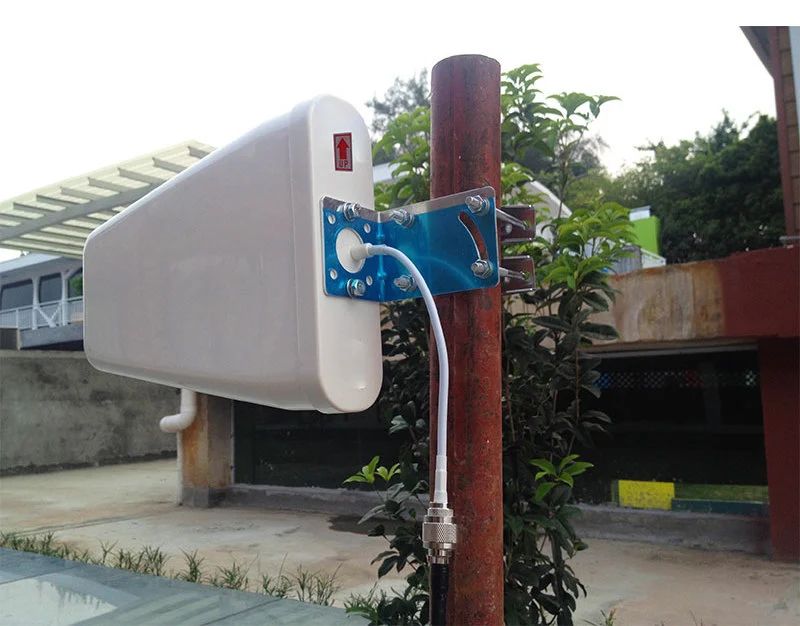

1. Outdoor receiving antenna installation: Find a place where the signal source (more than 3 bars) is good outdoors, and the logarithmic antenna is mounted upward in the direction of the arrow, and is parallel to the ground to the base station.

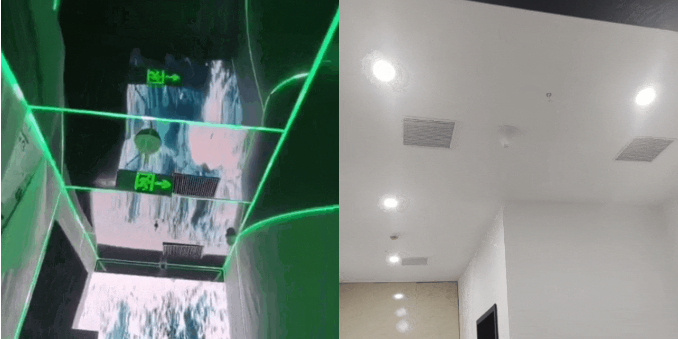

2. Indoor divergent antenna installation: In consideration of the bar, the stage area was chosen to be covered with two wall-mounted antennas, and the balcony and toilet were chosen to be covered with ceiling antennas. (The installation needs to be customized according to the scenario.)

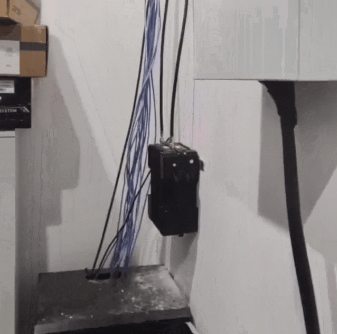

3.Ensure that all components are connected and connectors are secured, and power on the amplifier.
4. Signal detection

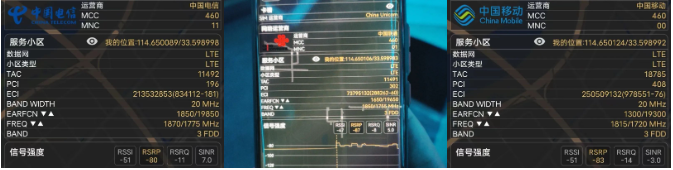

After installation, use the “CellularZ” software to detect each area of the bar. The following figure is the signal value of Telecom, Unicom and mobile three networks, and the coverage effect is very smooth!
RSRP is the standard value for measuring whether the signal is smooth, generally speaking, it is very smooth above -80dBm, and there is basically no network below -110dBm.
After installation, the bar coverage effect is amazing, and the triple network signal is very smooth! The user assigned another project to Lintratek.
