The signal outside the mountain is blocked by the mountain.
There is a power station outside the mountain. What should I do if there is no signal?
Employees at the power station cannot communicate with the outside world after entering.
It will have a great impact on the safety of people and property.
See how we solved it?
Design

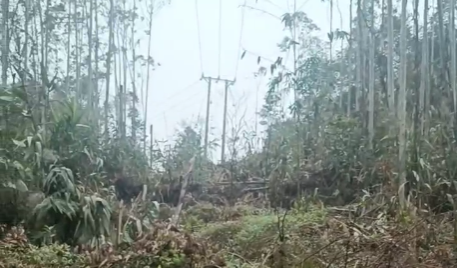

This project is located in a hydroelectric power station in the suburbs of Conghua, Guangzhou. Provide signal coverage for the entire power generation building. The signal source is on the other side of the mountain 2.5 kilometers away from the signal coverage area. The power generation building is surrounded by mountains and small rivers. The construction difficulty lies in the need to cross two mountains.
mobile signal signal solutions
Our professional signal coverage team customized a near-end and a far-end with 2 ceiling antennas based on customer needs.

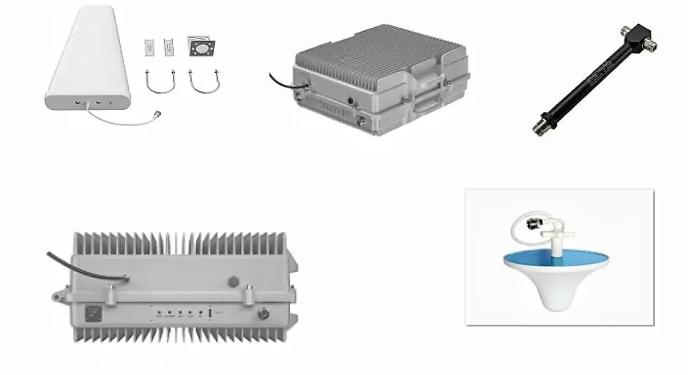

Equipment List
5W TDD-F band fiber optic repeater one to one
Optical fiber line 2.5KM
Large logarithmic periodic antenna 1
2 ceiling antennas
Feeder line 100 meters
1 dual power splitter
4I installation method
1
Outdoor antenna installation

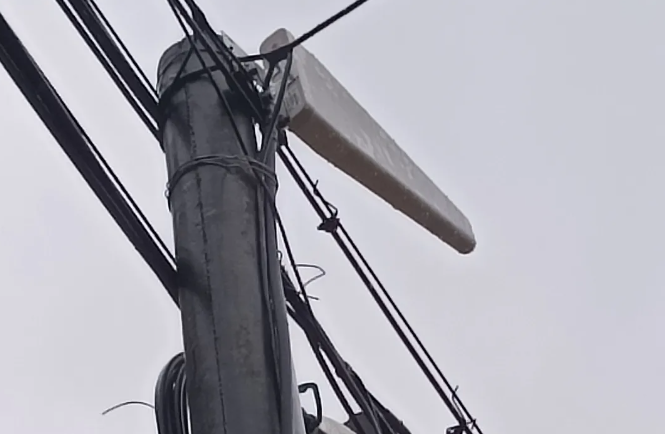

The large logarithmic periodic antenna is placed on a telephone pole 2.5KM away to receive signals, and the feeder is connected to the optical fiber machine;
2 Outdoor fiber optic repeater installation

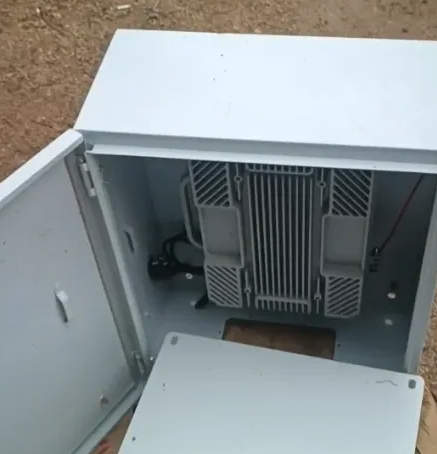

Outdoor installation needs to be installed in a waterproof box, and the fiber optic cable is connected to the indoor fiber optic repeater. Just turn on the power.
Warm reminder: We can also provide solar energy supply packages when there is no power supply outdoors! ;
3

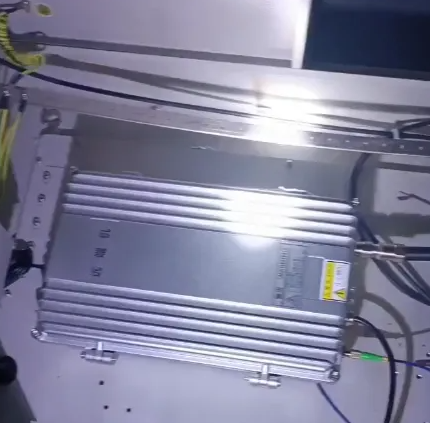

Indoor fiber optic repeater installation
4. The ceiling antenna is installed. Witness the miraculous moment!
The last step to verify:

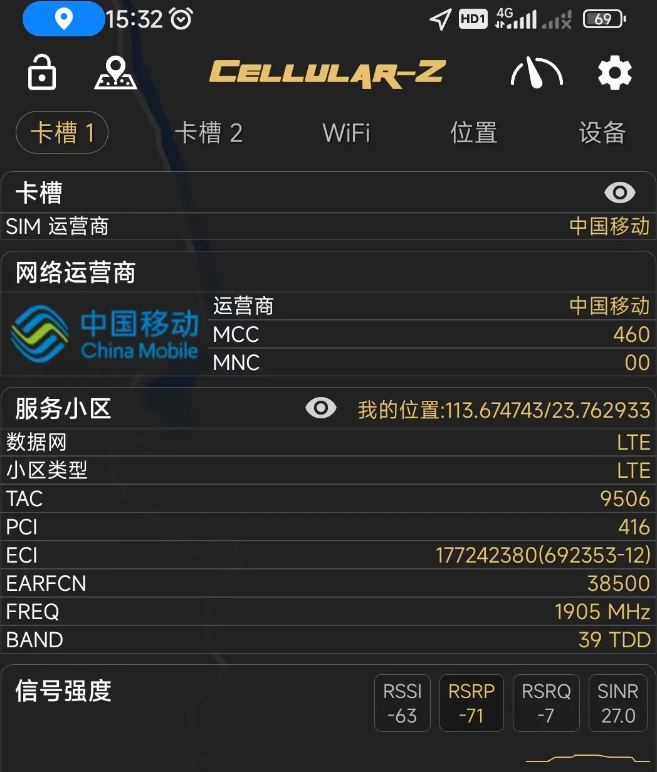

After installation, you can directly go online to detect the signal, or you can use the “CellularZ” software to detect the effect.
Signal detection after installation,full signal
