Why Do Commercial Buildings Need 5G Signal Coverage?
As 5G becomes more widespread, many new commercial buildings are now incorporating 5G mobile signal coverage. But why is 5G coverage essential for commercial buildings?
Commercial Buildings: Office buildings, shopping malls, underground parking lots, etc.
Public Service Buildings: Schools, hospitals, train stations, subway stations, etc.
Industrial Buildings: Factories, automated assembly lines, etc.
The key to understanding this lies in the specific requirements of large commercial structures. Mobile signals, whether 2G, 3G, 4G, or 5G, all rely on electromagnetic wave transmission. These waves come in different frequencies, each with its own characteristics. For example, low-frequency bands (700-900 MHz) offer low bandwidth, less data, and fewer users, but they have better penetration and propagation capabilities, which makes them suitable for rural or suburban areas. On the other hand, higher-frequency bands (3400-3600 MHz) offer higher bandwidth, more data, and greater user capacity, but due to their high-frequency nature, they have poor penetration and propagation abilities, which is why they are typically deployed in urban areas.
Large buildings in city centers often experience the “Faraday cage” effect, making it difficult for high-frequency 5G signals to penetrate the structure and provide coverage indoors.
Two Types of 5G Signal Coverage Solutions
When it comes to 5G signal coverage within buildings, there are two main approaches: new installation projects and retrofit projects.
1. New 5G Signal Coverage Installations:
For new projects, mobile signal booster providers select suitable commercial mobile signal boosters or fiber optic repeaters based on the specific frequency bands that need to be covered. Communication engineers then design the Distributed Antenna System (DAS) based on the penetration and gain characteristics of the frequency bands.

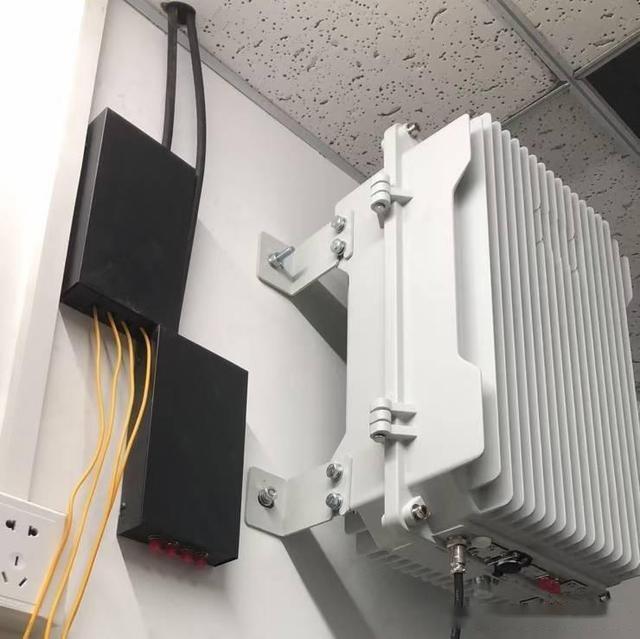

Lintratek 5G Fiber Optic Repeater
2. Retrofit 5G Signal Coverage Projects:
In retrofit projects, mobile signal booster providers upgrade the existing DAS. Communication engineers analyze the current antennas and boosters to determine how they can be modified to accommodate the new 5G frequency bands. If the 5G frequencies are similar to the existing ones, it may be enough to replace the boosters or repeaters and antennas to achieve 5G coverage. However, if the 5G frequencies are significantly higher, replacing antennas may not provide sufficient coverage due to the poor penetration of high-frequency signals. In such cases, additional cabling and infrastructure may be needed to ensure proper coverage.
New Installation vs. Retrofit: A Cost-Effective Comparison
If the cost of retrofitting is too high, Lintratek often recommends a new installation to replace the old solution. As production costs for new solutions have decreased with increased volume, a fresh 5G signal coverage plan can reduce labor costs associated with adjustments and system integration. Lintratek frequently opts for new installation projects over retrofits in many 5G deployments. Additionally, Lintratek stays ahead of the curve by planning for future technologies like 6G, ensuring that even as mobile communication evolves, their existing 5G solutions will have enough redundancy (quota) to be upgraded to 6G.
Lintratek’s Expertise and Customized Solutions
In a competitive market, Lintratek stands out due to its deep understanding of mobile communication technologies, particularly its foresight in planning for 5G and 6G. The company provides scalable, cost-effective solutions that not only meet current 5G requirements but also offer long-term upgrades. Lintratek excels in delivering customized solutions for large buildings and complex commercial environments, often reducing construction costs by choosing new installation options over retrofits, thereby minimizing the costs associated with tuning and system integration.
Lintratek’s Leadership in 5G Signal Coverage
As 5G continues to roll out, more and more commercial buildings will need 5G coverage to support high traffic and large capacity demands. However, the structure of buildings and the Faraday cage effect make it difficult for standard 5G signals to penetrate indoors. Whether it’s a new installation or a retrofit project, selecting the right equipment and designing the system correctly is essential for effective 5G coverage.
With 13 years of industry experience, Lintratek has become a leading manufacturer of commercial mobile signal boosters, fiber optic repeaters, and distributed antenna systems (DAS) in China. The company has accumulated rich experience in various commercial projects, providing tailored solutions for both new and retrofit 5G signal coverage projects. Lintratek’s ability to select the right equipment and design efficient systems based on building characteristics and frequency requirements sets them apart. Moreover, the company is always aligned with technological trends, proactively planning for 6G systems to ensure seamless upgrades in the future. Therefore, Lintratek not only holds a competitive edge in 5G signal coverage but also offers clients sustainable, cost-effective, and future-proof solutions for their communication needs.
Post time: Dec-11-2024
