There is no signal in the factory floor, resulting in no business calls, Seriously affect the factory business!! Lintratek’s scheme supports full coverage of Tri-Netcom, 2G-4G signals, whether it is a phone call, or the Internet is smooth, great value!

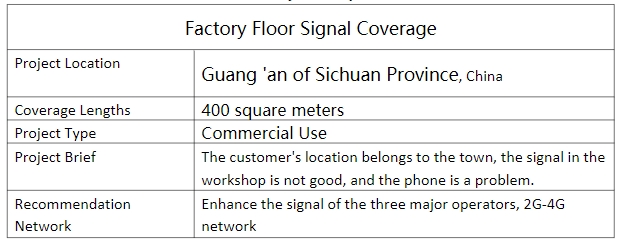

Project Analysis

The production site of the project in a town in Guangan, Sichuan Province, the factory workshop is located on the middle floor of the building, and the nearby high-rise buildings block the signal from the base station. The signal in the workshop is particularly poor, only the window side has a weak signal, often can not receive business calls, seriously affecting the factory business.

Scheme Design

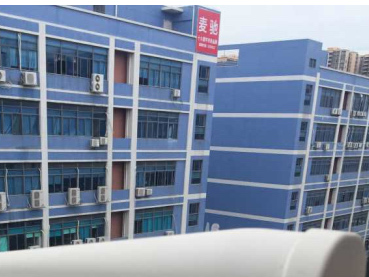

The engineer assisted the signal test remotely, and found a strong signal outside the window of the workshop. The strong signal was in the 1800 band, which could receive the 2G-4G network of the three major operators, and support both call and Internet access.

Android users can download “CellularZ” to detect signal values

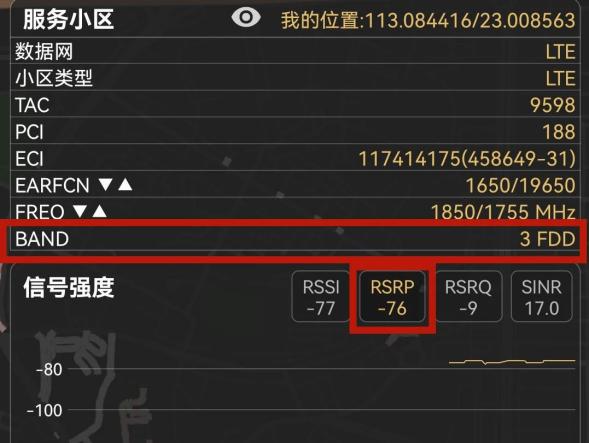

“BAND” refers to the mobile phone signal frequency band, involving communication knowledge, you can consult professionals; “RSRP” is the standard value to measure whether the signal is smooth, the unit of the signal is dBm, the range is -50dBm to -130dBm, the smaller the absolute value, the stronger the signal.

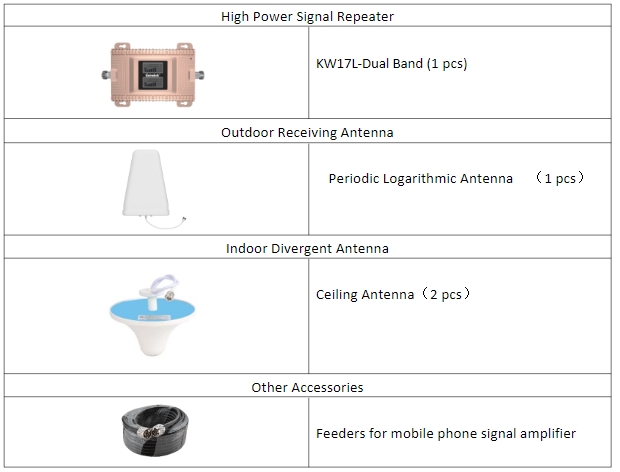

Product collocation scheme

This repeater for the call + Internet dual-band model, can enhance mobile, Unicom, telecom 2G-4G signal frequency band, suitable for office, residential, basement and other small and medium-sized area signal coverage, can be used with logarithmic and ceiling antenna.

Installation Process

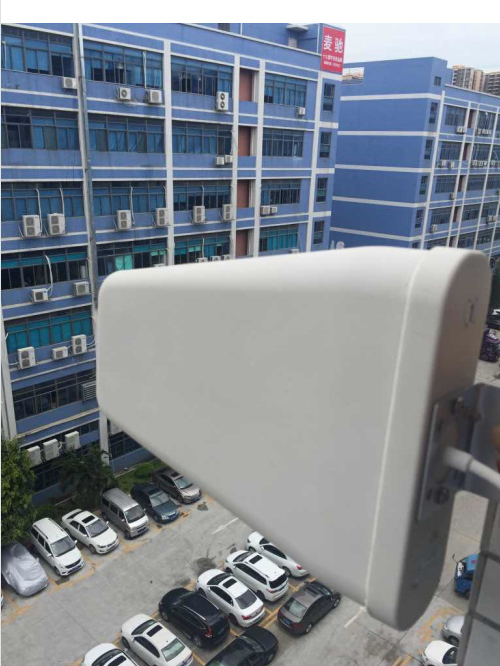

1. Install the receiving antenna： The receiving antenna is installed near the window (the area where the signal value of the mobile phone is > 3 cells), and the signal strength of the receiving antenna affects the coverage effect.

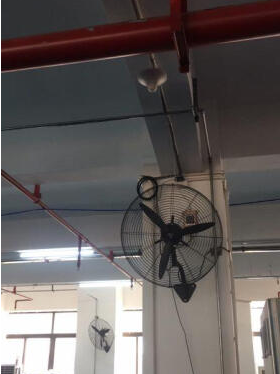

2. Installation of transmitting antenna: Install the ceiling antenna indoors and hang it from the ceiling with the small head down.

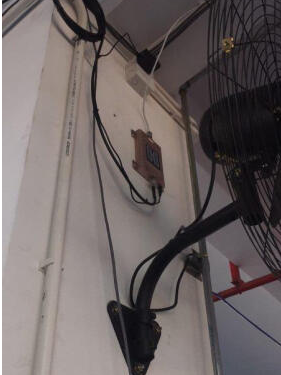

3.Start the power supply after the receiving and transmitting antennas are connected to the host; otherwise, the host will be damaged.

4.Signal detection

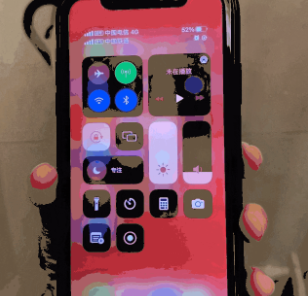

After installation, you can directly detect the signal online, or you can use the “CellularZ” software to detect the effect.

This program is suitable for small and medium-sized area signal coverage, such as: rental houses, basements, offices, etc., support the 2G-4G network of the three networks, the coverage effect can be seen! Lintratek focus on the field of mobile communication for 20 years, research and development models for different scenarios, from tens of square to ten thousand can be used, welcome background private message consultation.
