How to Customize Frequencies for Powerful Mobile Signal Boosters and Fiber Optic Repeaters

In modern communication engineering, mobile signal boosters and fiber optic repeaters play a critical role in solving signal coverage issues. However, in certain specialized scenarios, standard products may not fully meet the requirements, necessitating the customization of specific frequency bands to achieve optimal signal coverage.





1. Customizing Frequencies for Mobile Signal Boosters
Lintratek’s powerful mobile signal boosters that exceed 35dBm (3W) support frequency customization. The available frequency bands include B2, B28, B20, and B1, with power options ranging from 35dBm (3W) to 43dBm (20W) to meet diverse coverage requirements.

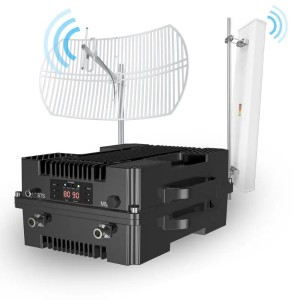

kw35-powerful-mobile-phone-repeater

KW35A 3W Powerful Mobile Signal Booster



During the customization process, customers can select the most suitable frequency combinations based on their specific needs. For instance, to support multiple network standards simultaneously, combinations can include 3 to 5 bands from GSM, DCS, WCDMA, LTE, and NR. Notably, NR represents the 5G band, which is becoming increasingly essential with the expansion of 5G networks.

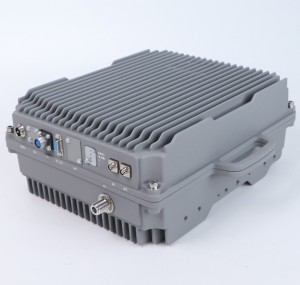

5G Digital Fiber Optic Repeater

5G Fiber Opitc Repeater



2. Customizing Frequencies for Fiber Optic Repeaters
Fiber optic repeaters can also be customized based on client requirements, with power options ranging from 5W to 20W, and available in analog and digital versions. If the system involves single or dual-band fiber optic repeaters, Lintratek can provide power levels up to 40W.



(a) Analog Fiber Optic Repeaters

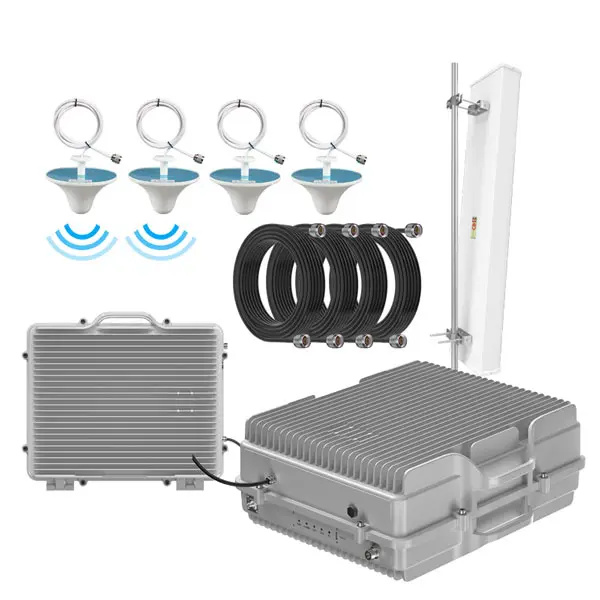

5G-fiber-optic-repeater


Supports up to three frequency bands with a maximum power of 20W.

Relies on analog signal amplification and transmission, suitable for signal coverage over distances of up to 5km.



(b) Digital Fiber Optic Repeaters

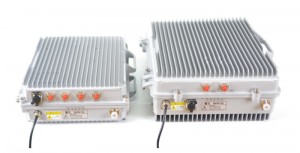

5g Digital Fiber Optic Repeater-2
Supports up to five frequency bands, but with a maximum power of 5W.

When customized for three frequency bands, the power can reach 20W.

Utilizes advanced digital signal processing (DSP) technology, offering higher flexibility and superior signal quality, ideal for complex network environments and covering transmission distances of up to 8km.



3. Lintratek’s Application Cases in Engineering Projects
Lintratek boasts extensive experience in customizing frequencies for mobile signal boosters and fiber optic repeaters. Below are some notable success stories:



(a) Signal Coverage in Remote Areas

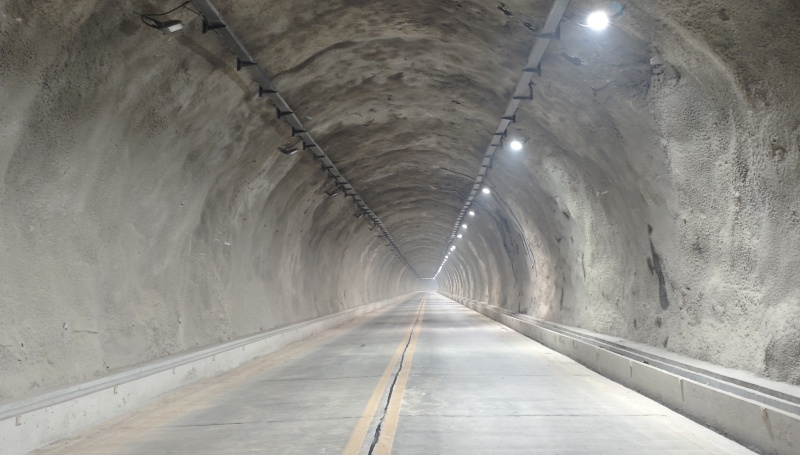

Tunnel Road in Rural Area

Lintratek: Fiber Optic Repeater for 4G/5G Coverage in Mountainous Tunnel Project

Lintratek successfully completed a 2km 4G/5G signal coverage pilot project in a remote 11km mountain tunnel in Henan. The project deployed a dual-band digital fiber optic repeater developed by Lintratek, overcoming challenges such as tunnel curvature, extreme weather conditions, and insufficient coverage from traditional analog equipment. Through dynamic adjustment strategies, seamless signal coverage was achieved, providing reliable technical validation for the full-scale implementation. This project demonstrated Lintratek’s capability for innovation and flexible deployment in complex environments.



(b) Office Building Signal Coverage

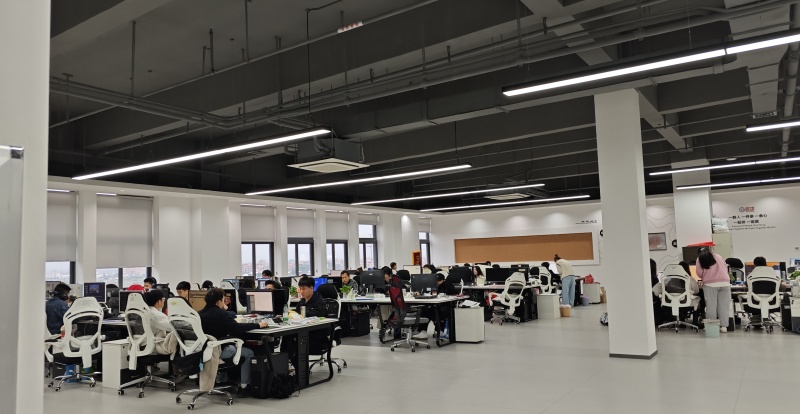

Office Building
Lintratek Completes High-Efficiency Signal Coverage in a Foshan Office Building

Leveraging 13 years of expertise in communication solutions, Lintratek provided a high-performance mobile signal coverage solution for a Foshan office building. Covering 4 elevators and 4000㎡ of office space, Lintratek optimized equipment deployment by reducing the number of elevator signal boosters from 4 to 2 (each 500mW unit covering two elevators, equipped with 1 outdoor and 2 indoor antennas). For the office area, 2 commercial 3W triple-band signal boosters (each covering 2000㎡) were deployed with 24 ceiling-mounted indoor antennas. The solution balanced cost efficiency with superior signal quality, successfully eliminating blind spots and earning high praise from the client.



(c) Signal Coverage in Hotels and High-Rise Buildings

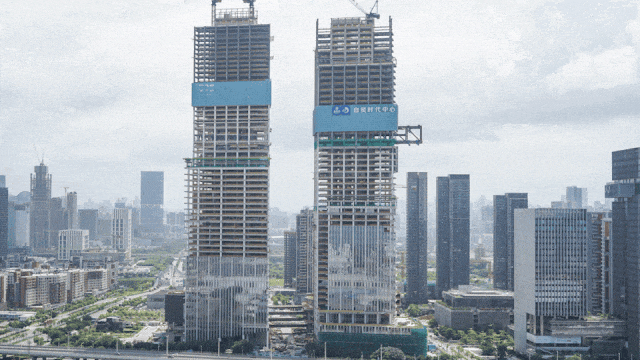

The Skyscraper in Shenzhen

Lintratek Fiber Optic Repeater Resolves Signal Blind Spots in Shenzhen Commercial Complex

For a large commercial complex in Shenzhen spanning 500,000㎡, Lintratek provided a fiber optic repeater solution to eliminate signal blind spots caused by the Faraday cage effect of the steel structure. The Lintratek team deployed a digital fiber optic repeater system with over 3100 indoor antennas, achieving seamless signal coverage. Post-installation tests showed excellent signal quality across all major operators, ensuring a stable and high-speed communication experience for users.



4. Supporting Communication Project Bidding with Superior Products
Lintratek’s extensive expertise in customizing frequency bands, combined with its commitment to high-quality manufacturing and rigorous testing, ensures reliable and high-performance products. The company also provides comprehensive after-sales support, including one-on-one expert guidance and tailor-made solutions, alleviating client concerns.



With a global footprint spanning 155 countries and regions and serving over 1 million users, Lintratek’s continuous innovation in mobile communication technology has addressed numerous signal challenges and created substantial social value.



Why Choose Lintratek for Your Communication Projects?


By choosing Lintratek as your communication solution provider, you gain:

Cutting-edge technology that ensures advanced and reliable solutions.

Customized frequency bands tailored to your specific project requirements.

Expert technical support and a proven track record in complex communication environments.

Lintratek helps your project stand out in competitive bidding while delivering consistent, high-quality communication performance.
