This article provides an overview of the internal electronic components of a mobile signal repeater. Few manufacturers disclose the internal components of their signal repeaters to consumers. In reality, the design and quality of these internal components play a crucial role in the overall performance of the mobile signal repeater.
If you’d like a simple explanation of how a mobile signal repeater works, click here.
Basic Principles of a Mobile Signal Repeater

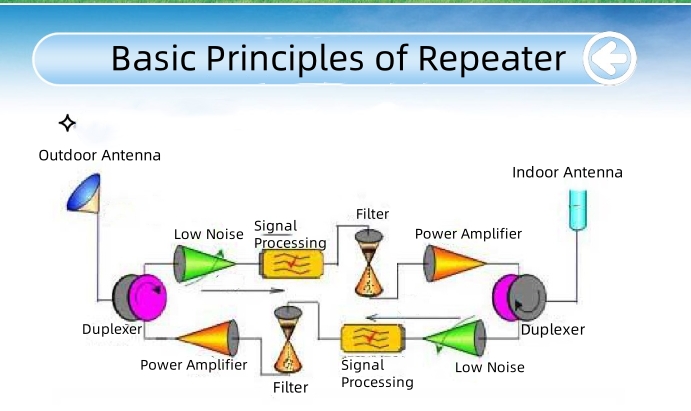

As shown in the diagram above, the basic principle of a mobile signal repeater is to amplify signals in stages. Modern mobile signal repeaters on the market require multiple stages of low-gain amplification to achieve the desired output gain. Therefore, the gain in the diagram above represents just one gain unit. To reach the final gain, multiple stages of amplification are needed.
Here’s an introduction to the typical modules found in a mobile signal repeater:
1. Signal Reception Module
The reception module is responsible for receiving external signals, typically from base stations or antennas. It captures the radio signals transmitted by the base station and converts them into electrical signals that the amplifier can process. The reception module typically includes:
Filters: These eliminate unwanted frequency signals and retain the required mobile signal frequency bands.
Low Noise Amplifier (LNA): This amplifies the weak incoming signal while minimizing additional noise.

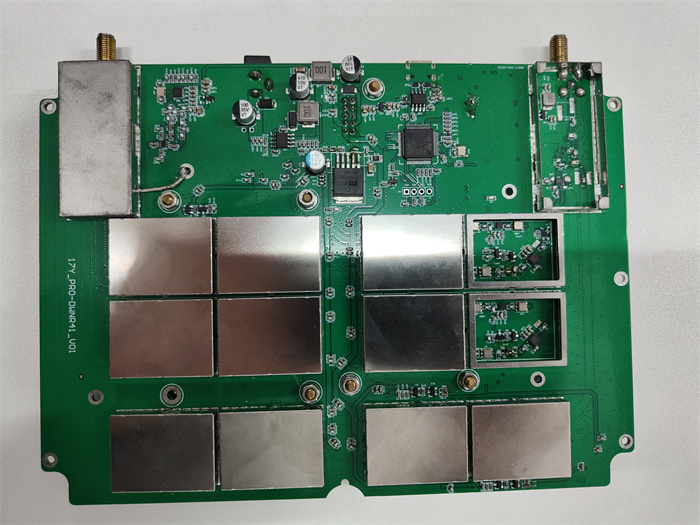

Internal Components-mobile signal repeater for home
2. Signal Processing Module
The signal processing unit amplifies and adjusts the received signal. It generally includes:
Modulator/Demodulator (Modem): This modulates and demodulates the signal to ensure it complies with standard communication protocols.
Digital Signal Processor (DSP): Responsible for efficient signal processing and enhancement, improving signal quality and reducing interference.
Automatic Gain Control (AGC): Adjusts the signal gain to ensure it remains within optimal levels—avoiding both signal weakness and excessive amplification that could cause self-interference or disrupt other devices.
3. Amplification Module
The power amplifier (PA) boosts the signal strength to extend its coverage range. After signal processing, the power amplifier amplifies the signal to the required strength and transmits it through the antenna. The choice of power amplifier depends on the required power and coverage area. There are two main types:
Linear Amplifiers: These preserve the quality and clarity of the signal without distortion.
Non-linear Amplifiers: Used in special cases, typically for wide-area coverage, though they may cause some signal distortion.
4. Feedback Control and Interference Prevention Modules
Feedback Suppression Module: When the amplifier transmits a signal too strong, it could cause feedback at the receiving antenna, leading to interference. Feedback suppression modules help eliminate this self-interference.
Isolation Module: Prevents mutual interference between the receiving and transmitting signals, ensuring proper amplifier operation.
Noise Suppression and Filters: Reduce external signal interference, ensuring the signal remains clean and strong.
5. Signal Transmission Module
Transmission Module: This module sends the processed and amplified signal via a transmitting antenna to the coverage area, ensuring mobile devices receive the enhanced signal.
Transmit Power Controller: Regulates the transmission power to prevent over-amplification, which could cause interference, or under-amplification, which could lead to weak signals.
Directional Antenna: For more focused signal coverage, a directional antenna may be used instead of an omnidirectional one, especially for large-area coverage or signal enhancement.
6. Power Supply Module
Power Supply Unit: Provides a stable power supply to the signal repeater, typically through an AC-to-DC converter, ensuring it operates efficiently under varying voltage conditions.
Power Management Module: Higher-end devices may also include power management features to optimize energy efficiency and prolong the device’s lifespan.
7. Heat Dissipation Module
Cooling System: Signal repeaters generate heat during operation, especially power amplifiers and other high-power components. A cooling system (such as heat sinks or fans) helps maintain an optimal working temperature to prevent overheating and damage to the device.
8. Control Panel and Indicators
Control Panel: Some mobile signal repeaters come with a display panel that allows users to adjust settings, fine-tune performance, and monitor the system.
LED Indicators: These lights show the operational status of the device, including signal strength, power, and operational state, helping users determine if the repeater is functioning correctly.
9. Connectivity Ports
Input Port: Used for connecting external antennas (e.g., N-type or F-type connectors).
Output Port: For connecting internal antennas or transmitting signals to other devices.
Adjustment Port: Some repeaters may include ports for adjusting gain and frequency settings.
10. Enclosure and Protection Design
The repeater’s enclosure is typically made of metal, which helps shield against external interference and prevent electromagnetic interference (EMI). Some devices also feature waterproof, dustproof, or shockproof enclosures to withstand outdoor or challenging environments.

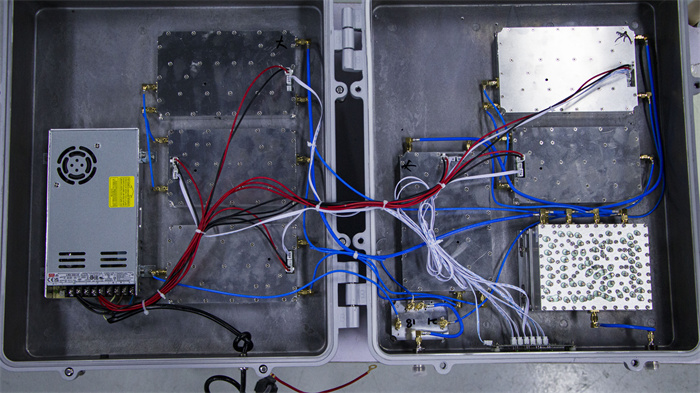

Internal Components-commercial mobile signal repeater
A mobile signal repeater enhances signals through the coordinated work of these modules. The system receives and amplifies the signal before transmitting the strengthened signal to the coverage area. When selecting a mobile signal repeater, it’s important to ensure that its frequency bands, power, and gain match your specific needs, especially in complex environments like tunnels or basements where interference resistance and signal processing capabilities are crucial.
Therefore, choosing a reliable mobile signal repeater manufacturer is key. Lintratek, established in 2012, has over 13 years of experience in manufacturing signal repeaters—from residential to commercial units, including fiber optic repeaters and direct broadcast stations. The company sources high-quality components for their products, ensuring reliable performance.
