Recently, Lintratek launched a mobile signal booster control app for Android devices. This app allows users to monitor and control the operating parameters of their mobile signal boosters, including adjusting various settings. It also includes installation guides, frequently asked questions, and useful tips for everyday use. The app connects to the mobile signal booster via Bluetooth, offering a fast and convenient way to monitor and adjust the device to suit different scenarios.
User Guide Overview

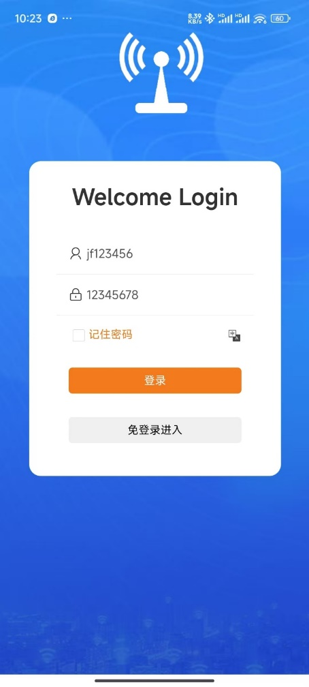

1. Login Screen
The login screen allows users to switch between Chinese and English.

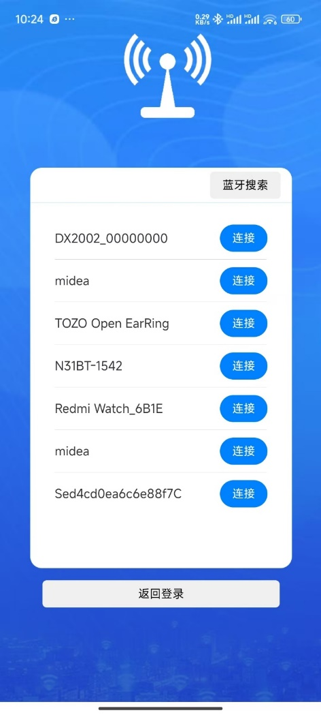

2. Bluetooth Connection
2.1 Bluetooth Search: Clicking on this will refresh the list of available Bluetooth devices nearby.
2.2 In the Bluetooth search screen, select the Bluetooth name corresponding to the mobile signal booster you wish to connect to. Once connected, the app will automatically switch to the device model page.
3. Device Information

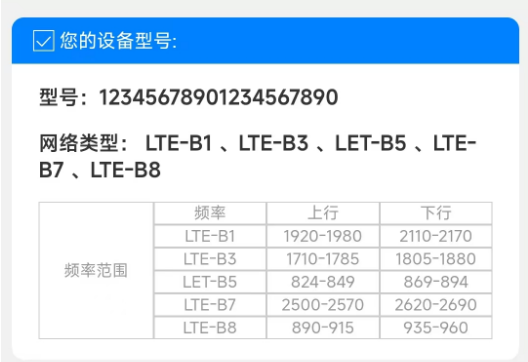

This page displays basic device information: model and network type. From here, you can see the frequency bands supported by the device and the specific frequency ranges for uplink and downlink.
- Device Model: Displays the model of the device.
- My Device: This section allows users to view the device status, adjust the device’s gain, and disable frequency bands.
- Other Information: Contains company information and device user guides.
4. Device Status

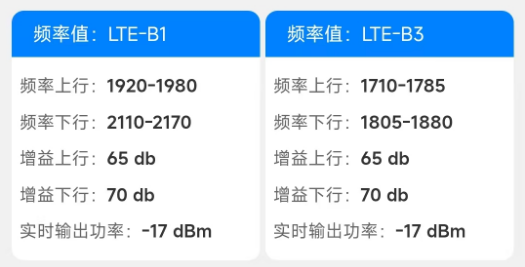

This page shows the working status of the device’s frequency bands, including the uplink and downlink frequency ranges, the gain for each band, and real-time output power.

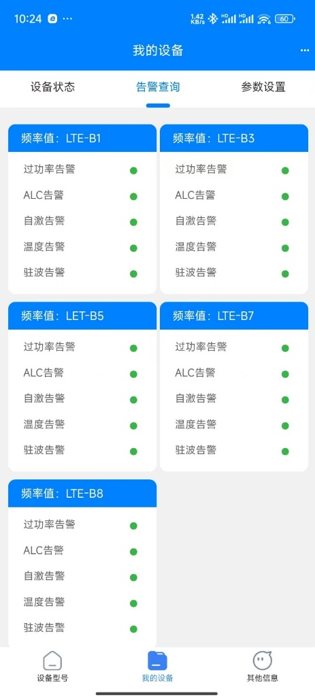

5. Alarm Query
This page shows alarm notifications related to the device. It will display power overrun, ALC (Automatic Level Control) alarm, self-oscillation alarm, temperature alarm, and VSWR (Voltage Standing Wave Ratio) alarm. When the system is working normally, these will appear in green, while any abnormalities will be shown in red.

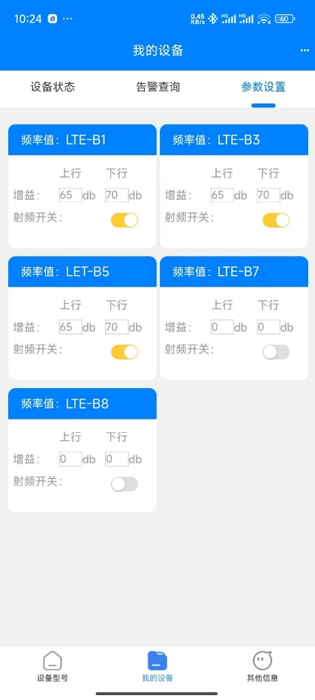

6. Parameter Settings
This is the settings page where users can adjust parameters such as uplink and downlink gain by entering values. The RF switch button can be used to disable a specific frequency band. When enabled, the frequency band operates normally; when disabled, there will be no signal input or output for that band.

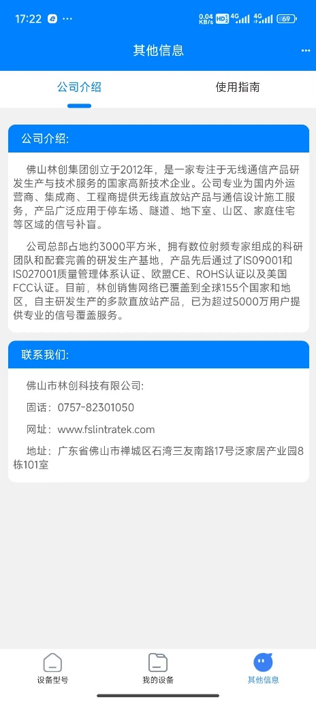

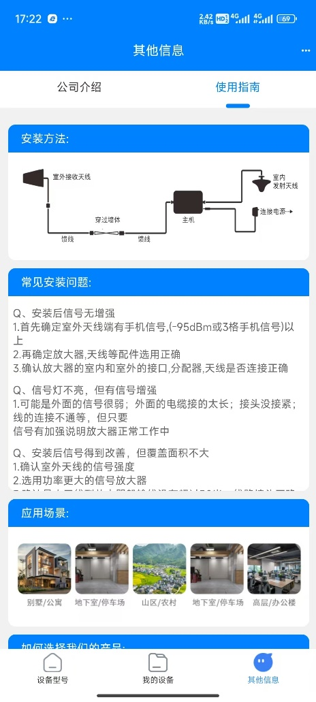

7. Other Information
- Company Introduction: Shows the company’s history, address, and contact information.
- User Guide: Provides installation diagrams, answers to common installation questions, and application scenarios.
Conclusion
Overall, this app supports Bluetooth connections to Lintratek’s mobile signal boosters. It enables users to view device information, monitor device status, adjust gain, disable frequency bands, and access installation instructions and FAQs.
