Large-scale Manufacturer Lintratek Y20P Dual 5G Mobile Signal Booster ALC 70dB Efficient Tri-band 4G/5G Mobile Signal Repeater for Elevator/Shop/Home

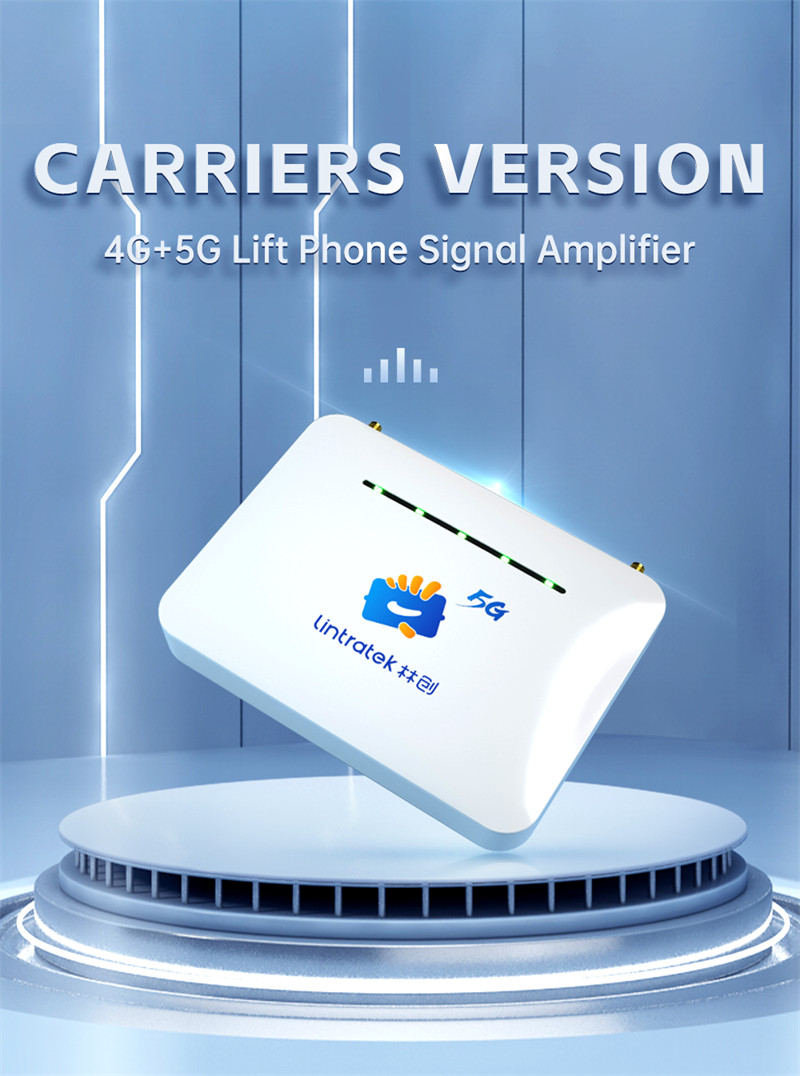

CARRIERS VERSION
4G+5G Lift Phone Signal Amplifier

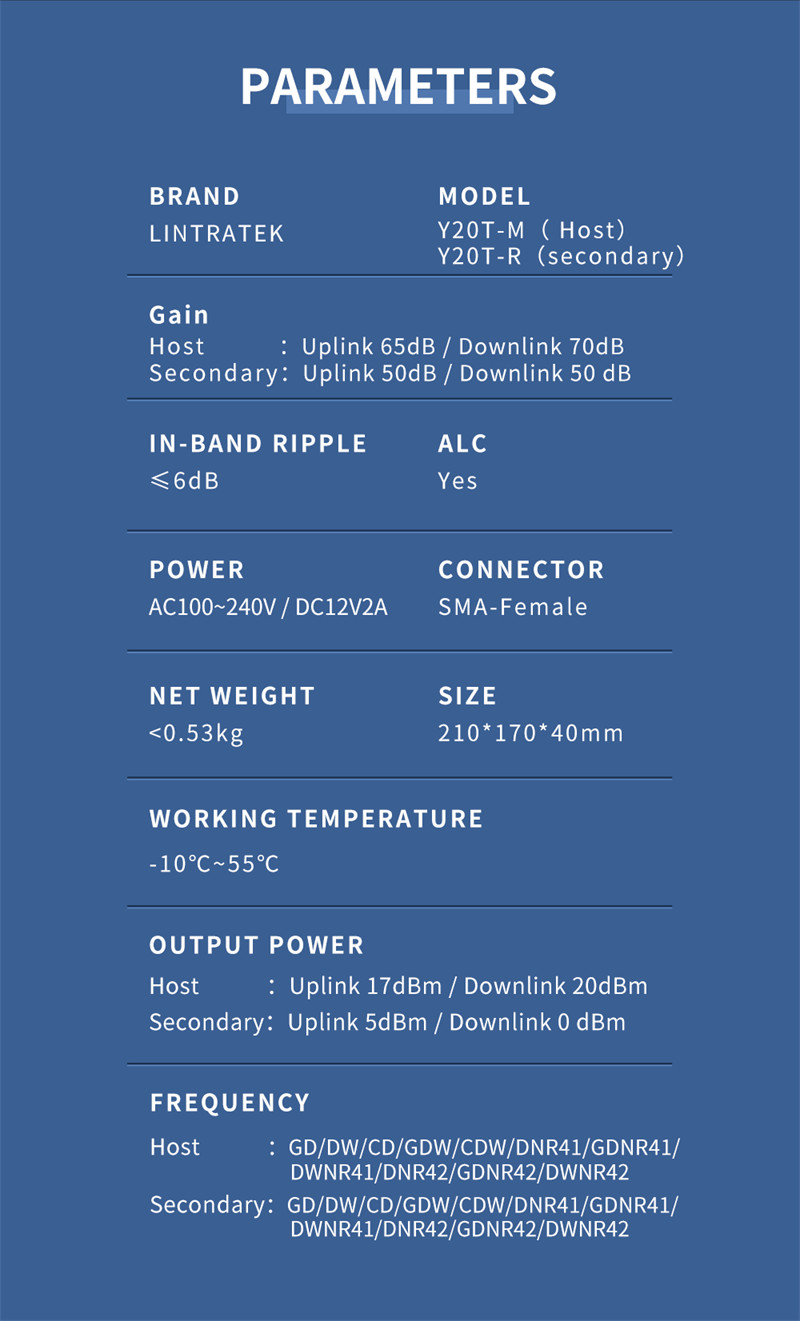

PARAMETERS
BRAND: LINTRATEK
MODEL: Y20T-M ( Host) Y20T-R (secondary)

Gain
Host: Uplink 65dB/ Downlink 70dB
Secondary: Uplink 50dB / Downlink 50 dB

IN-BAND RIPPLE: ≤6dB
ALC/AGC: Yes
POWER: AC100~240V/DC12V2A
CONNECTOR: SMA-Female

NET WEIGHT: <0.53kg
SIZE: 210*170*40mm

WORKING TEMPERATURE:-10℃~55℃

OUTPUT POWER
Host: Uplink 17dBm / Downlink 20dBm
Secondary: Uplink 5dBm/ Downlink 0 dBm

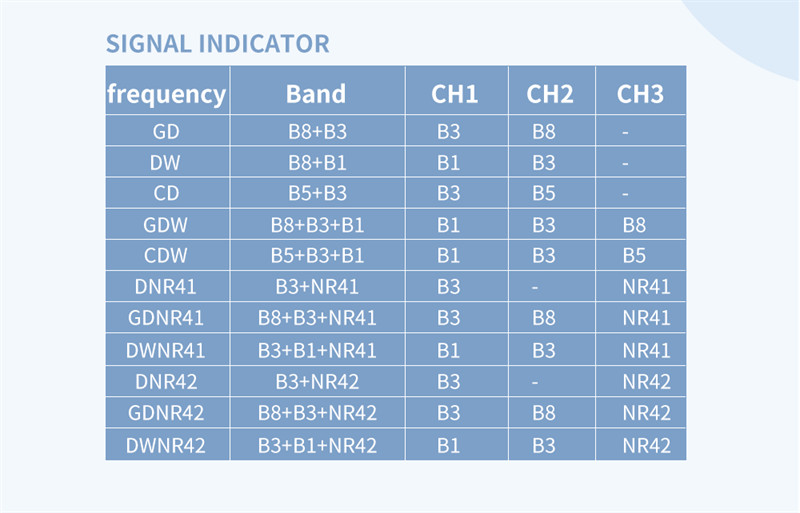

FREQUENCY
Host:GD/DW/CD/GDW/CDW/DNR41/GDNR41/
DWNR41/DNR42/GDNR42/DWNR42

Secondary: GD/DW/CD/GDW/CDW/DNR41/GDNR41/
DWNR41/DNR42/GDNR42/DWNR42

Support 4G/5G

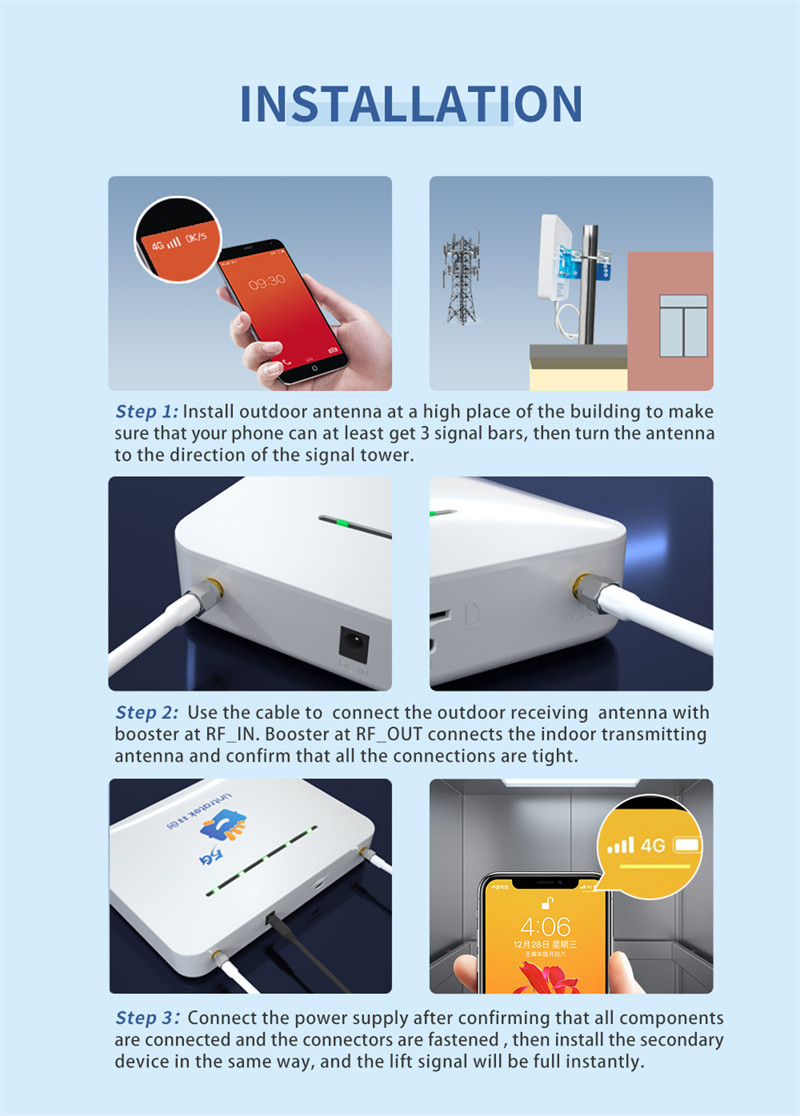

Easy Installation
Anti Interference

AGC V7.0
Increase Lift Signal
Mini Design
Good Heat Dissipation

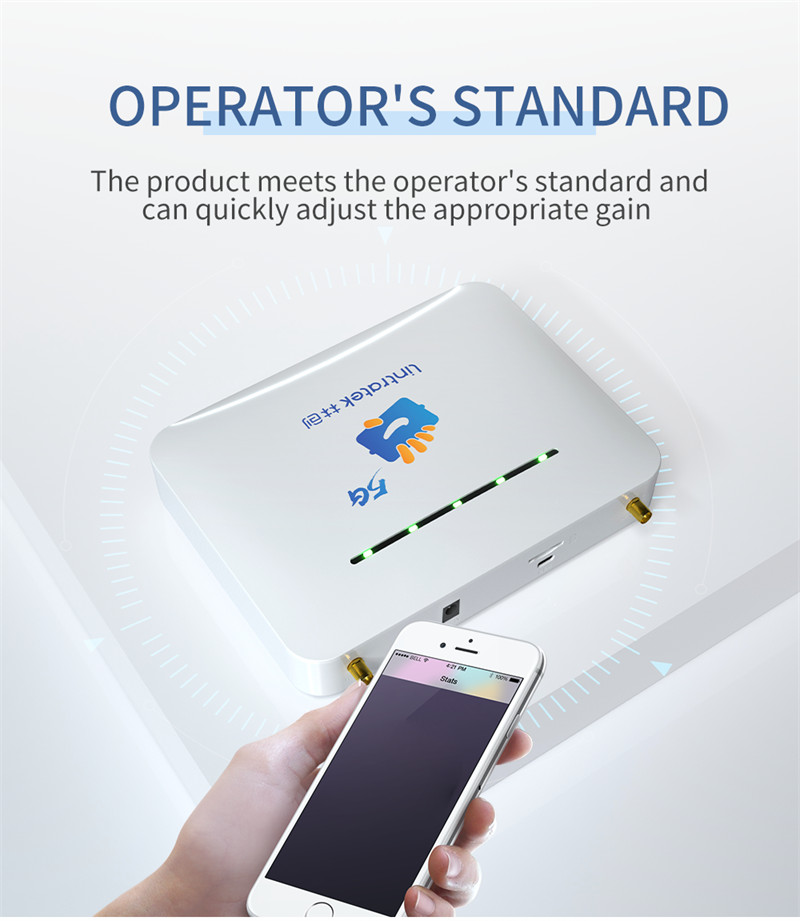

OPERATOR’S STANDARD
The product meets the operator’s standard and can quickly adjust the appropriate gain

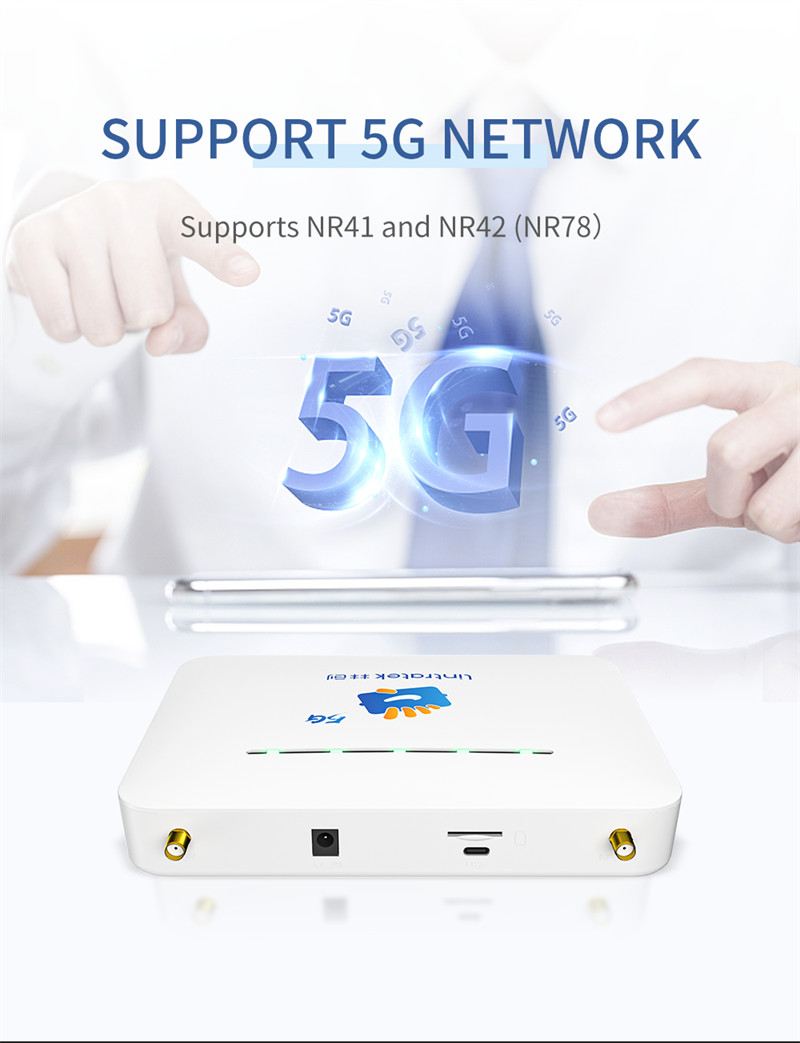

SUPPORT 5G NETWORK
Supports NR41 and NR42 (NR78)

INTELLIGENT ALC
Intelligently adjust the power of the host, and the signal booster’s working state continues to reach the optimal state.

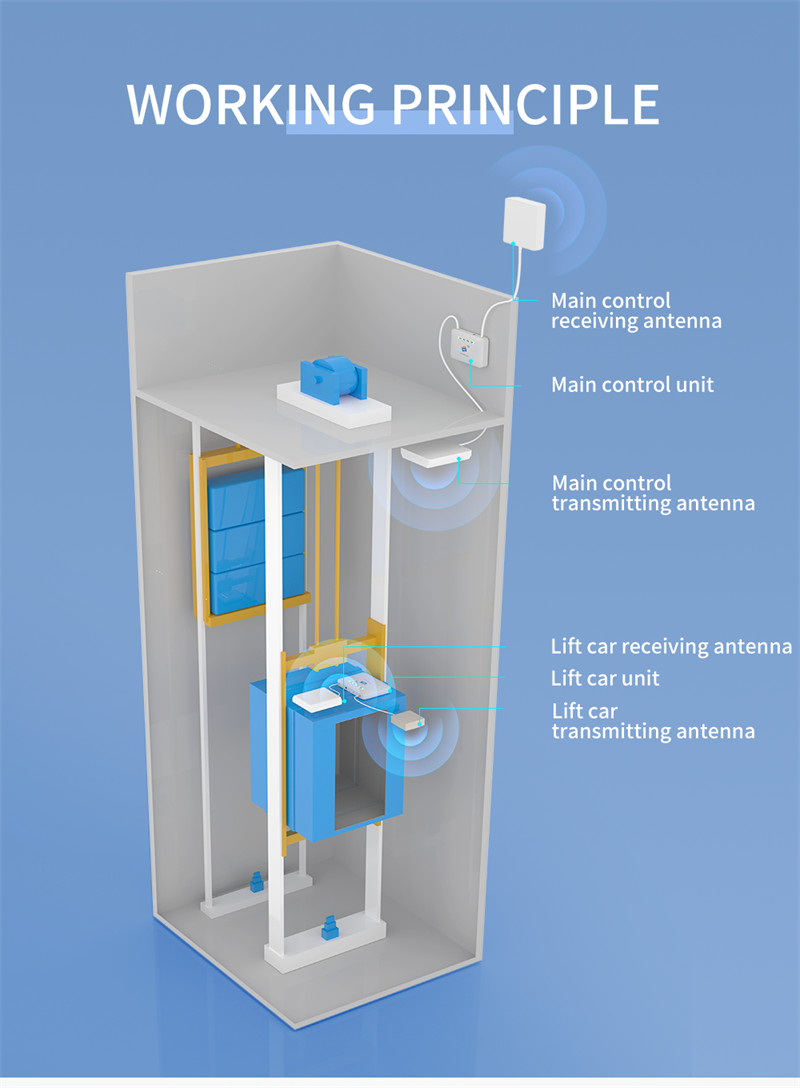

INCREASE LIFT SIGNAL
Solve the signal problems such as failure to call for help in the lift.

CUSTOMIZED REMOTE MONITORING FUNCTION
Contact us to add networking function and realize remote monitoring

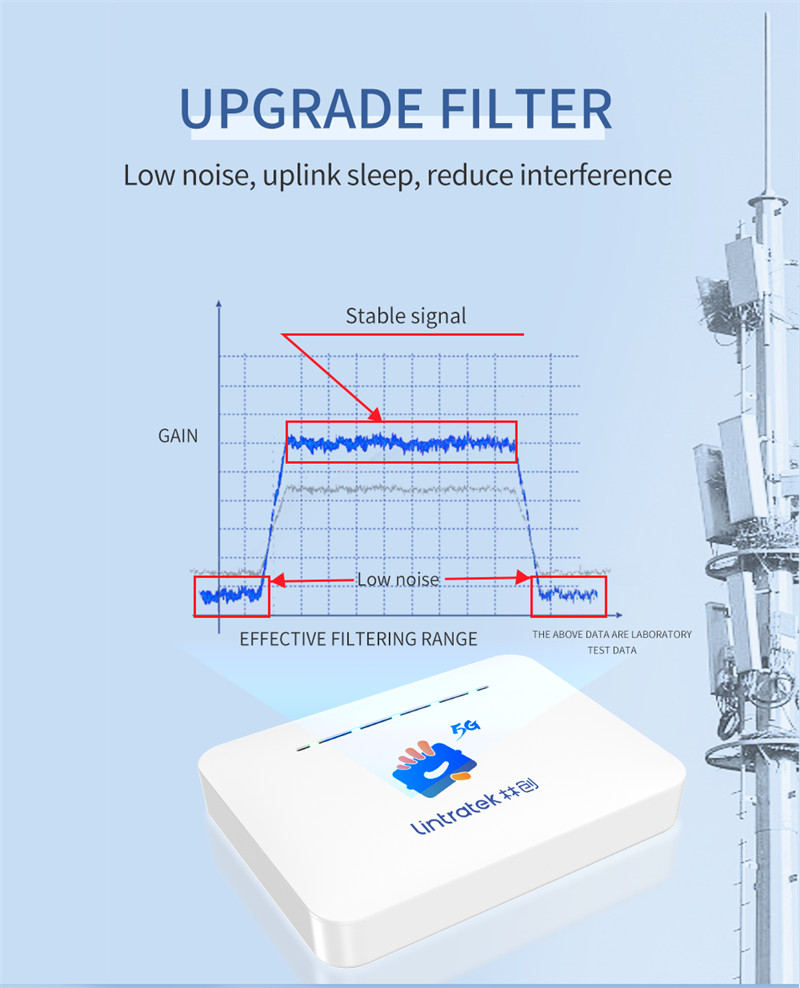

UPGRADE FILTER
Low noise, uplink sleep, reduce interference

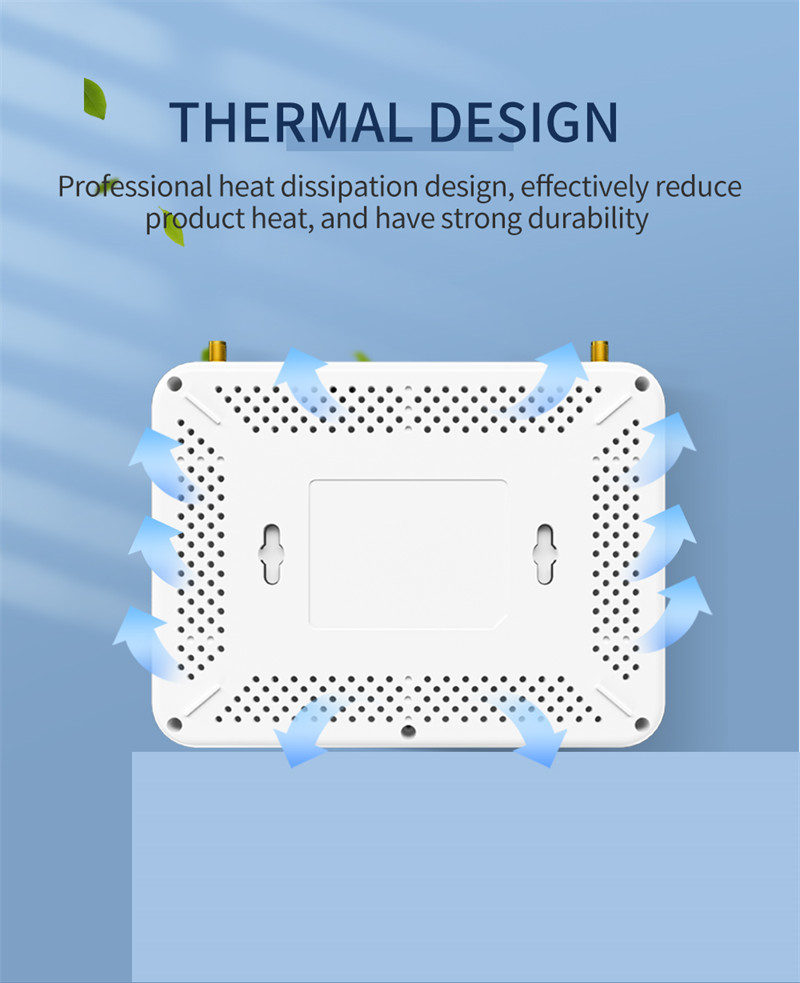

THERMAL DESIGN
Professional heat dissipation design, effectively reduce product heat, and have strong durability
