Help to amplify signal strength of network operator in North America
Main mobile network operators (MNO) in North America
In United States, the main network carriers are these: Verizon Wireless, AT&T, T-Mobile, Sprint, U.S. Cellular and other local companies.
And in Canada and in Mexico, the main MNO are: Rogers, Telus, Bell, Virgin Mobile, Movistar and AT&T.
|
Network Carrier |
Network Type |
Operating Band |
|
|
2G |
BC0(800), BC1(1900) |
|
4G |
B2 (1900), B4 (1700), B5 (850), B13 (700), B66 (1700/2100) |
|
|
|
2G |
B5 (850) |
|
3G |
B2 (1900) |
|
|
4G |
B2 (1900), B4 (1700), B5 (850), B12 (700) |
|
 |
2G |
B2 (1900), B5 (850) |
|
3G |
B2 (1900), B5 (850) |
|
|
4G |
B2 (1900), B4 (1700), B5 (850), B12/14/17/29 (700), B30 (2300) |
|
 |
2G |
B2 (1900) |
|
3G |
B2 (1900), B4 (1700/2100 AWS A-F) |
|
|
4G |
B2 (1900), B4/66(1700), B5 (850), B12 (700), B71 (600) |
|
 |
2G |
B2 (1900), B5 (850) |
|
3G |
B2 (1900), B5 (850) |
|
|
4G |
B4 (1700), B7 (2600), B12 (700) |
|
 |
3G |
B2 (1900), B5 (850) |
|
4G |
B2 (1900), B5 (850), B12/13/17 (700), B66 (1700) |
|
 |
3G |
B2 (1900), B5 (850) |
|
4G |
B4 (1700, B7 (2600) |
|
 |
2G |
B2 (1900) |
|
3G |
B2 (1900), B5 (850) |
|
|
4G |
B2 (1900), B4 (1700) |
But how we can get the frequency bands info of these network carriers, of which band accurately? Here we supply you some tips to check the frequency of the mobile network operator that you are using:
1.Call to the mobile network companies ask them to check for you directly.
2.Download APP “Cellular-Z” to check if you are using Android System.
3.Dial “*3001#12345#*” → Click “Serving Cell Info” → Check the “Freq Band Indicator” if you are using iOS System.
So, after you find out the frequency bands of the network operator that you are using, now you can choose the suitable solution to boost the signal receipt of your cell phone.
Optional combinations for boosting signal of MNO in North America
|
Optional Combination |
Full Kit Content |
Coverage |
Band Frequency |
AGC Function |
Network Carriers |
|
|
KW17L dual band*1 Yagi antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
300-400sqm |
B5+B2 √ B5+B4 √ B5+B1 √ |
NO |
|
|
|

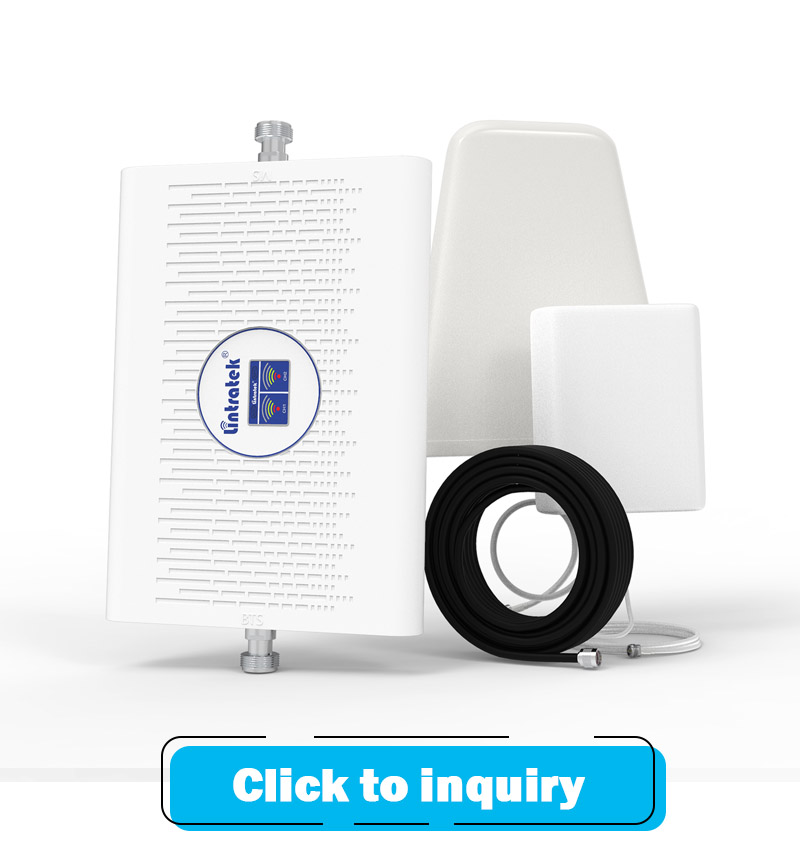

KW23C dual band*1 LPDA antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
300-400sqm |
B5+B2 √ B5+B4 √ |
YES |
|
|
|
KW20L quad band*1 LPDA antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
400-600sqm |
B5+B2+B4+B7 √ B5+B2+B4+B12 √ B5+B2+B4+B28 √ |
YES |
    |
|
|
KW20L five band*1 Yagi antenna*1 Panel antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
400-600sqm |
B5+B2+B4+B12+B13 √ B5+B2+B4+B28+B7 √ |
YES |
|
|
|
KW23F tri band*1 LPDA antenna*1 Ceiling antenna*1 10-15m cable*1 Power supply*1 Guide book*1 |
1000-3000sqm |
B5+B2+B4 √ B5+B2+B7 √ |
AGC+MGC |
In the chart we show you some feature models of multi-band signal booster, including dual band, tri band, quad band and five band. If you are interested in them, pls click the bottom to learn more detail, or you can just contact us for inquiring suitable network solution.
If you want to customize the special frequency bands meeting the demand of your local market, contact Lintratek sales team for information and discount. Lintratek has more than 10-year experience as manufacturer of telecommunication products like signal amplifier and booster antenna. We own our R&D studio and warehouse to supply you OEM&ODM service.
