Long distance transmission

Long distance wireless signal transmission with Lintratek powerful repeater

With times development, many rural places were exploited for connecting cities and cities. The transportation network brings a lot of convenience for people. And there is an important thing that should be considered during the set-up of transportation network: the wireless signal transmission.
For example, a new residential area in the suburbs, a new stretch of highway, a long-distance tunnel through the mountain, a subway/train station in rural area… Without the telecommunication in these places, there is no success of development of new zone.

1.1 long range wireless signal transmission

So what should we do to ensure a entire telecommunication system during the building of development zone, to make sure that there is no obstruction of wireless signal transmission in rural area?
Here we would like to introduce some new concepts: Long-distance wireless signal transmission and fiber optic repeater.
Long-distance wireless signal transmission: Transmit the wireless cell phone/radio signal from base tower to rural destination with device named repeater. About the device repeater suitable for long-distance wireless signal transmission, we Lintratek can supply you two options: normal high-gain powerful repeater and fiber optic repeater.
Fiber optic repeater: With Donor Booster, Remote Booster, Donor Antenna and Line Antenna to realize the long distance (with 5-10km fiber cable) wireless signal transmission.

The difference between normal powerful repeater and fiber optic repeater:

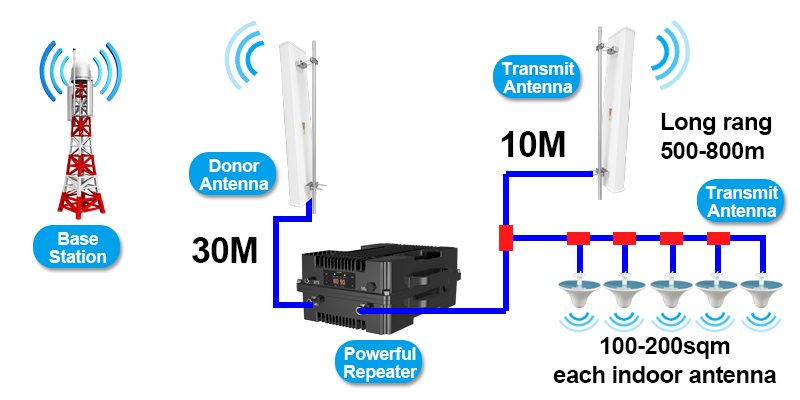

 1.2 long range wireless signal transmission  1.3 long range wireless signal transmission

normal powerful repeater

fiber optic repeater

As the pictures show us, the biggest difference between these two systems is: Fiber optic repeater is departed by Host booster and Line booster. These two departments are connected by length customized Fiber Cable. Or we can say, host booster plus line booster is equivalent to one normal powerful repeater. With system of fiber optic repeater, we can realize the long-distance wireless signal transmission suitable for those rural areas.

To let you learn more about the long-distance wireless signal transmission and Lintratek powerful signal booster, here we would like to share you a whole process of one of our project cases: Highway tunnel network solution.
On April 22th, 2022, we Lintratek received inquiry from Mr. Lew, saying that he had contracted a government project: highway tunnel building. Meanwhile he needed to solve the weak cell phone signal receipt during the process of the whole tunnel. That’s why he turned to Lintratek for help.

wqhg
qwh

After we communicated with our client Mr. Lew, we learnt that the whole length of one tunnel was 2.8km. And our job was supplying full-plan network solution to cover two unidirectional tunnels (each one is about 2.8km). Because the long distance, we need to adapt fiber optic repeater instead of normal powerful repeater.

1.4 long range wireless signal transmission

To cover two 2.8km tunnels, we recommend to install two systems of fiber optic repeater on each side (east and west). Each host booster needs to be connected with 2 pieces of line boosters, therefore, here we need to use 2-way splitter to realize it. And each line booster needs to be connected with 2 pieces of transmit antenna, also 2-way splitter is necessary here. As we know each transmit antenna can cover a range with 500-800m, therefore the full plan as the pic shows is reasonable.

Lintratek has more than 10-year experience to manufacture signal booster and supply client network solution, especially professional in long distance wireless signal transmission project case and powerful repeater installation. We also have different models for clients’ choice meeting different applications.

Product Model Channel Specification Frequency Band

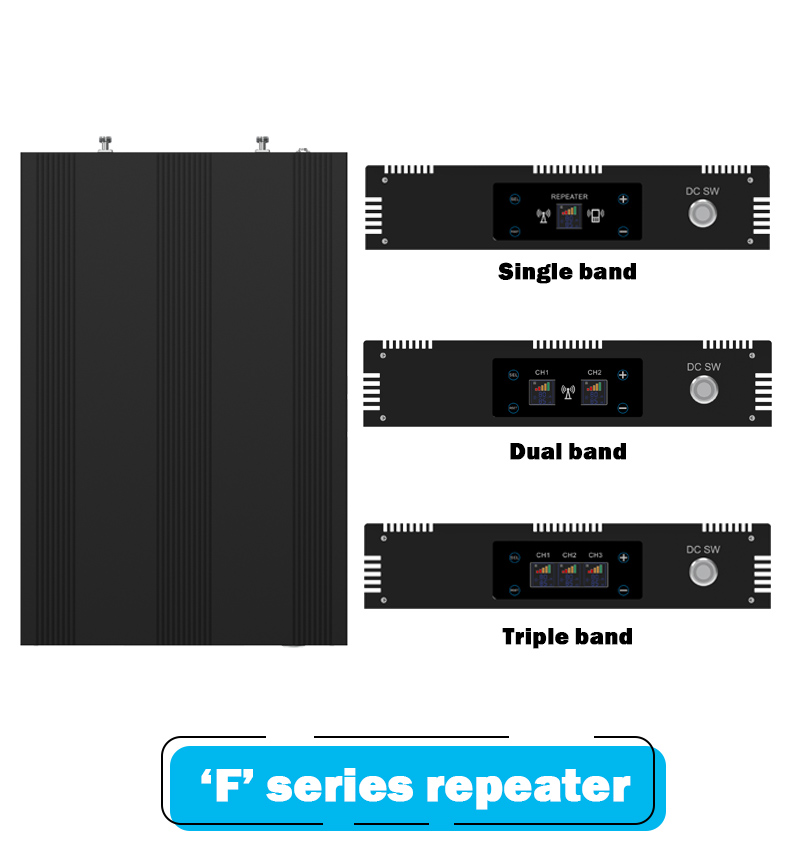

 F signal repeater Single Band170*270*60mm Max Garin: 85dBOutput Power: 33dBmRipple in Band: ≤6dB

Max Coverage: 3000sqm

RF Connector: N-Female N

CDMA: 850MHZGSM: 900MHZDCS: 1800MHZ

WCDMA: 2100MHZ

Dual Band220*270*60mm CD: 850+1800MHZDW: 1800+2100MHZGD: 900+1800MHZ

GW: 900+2100MHZ

Triple Band330*270*60mm CDW: 850+1800+2100CGD: 850+900+1800CGW: 850+900+2100

GDW: 900+1800+2100

DWL: 1800+2100+2600

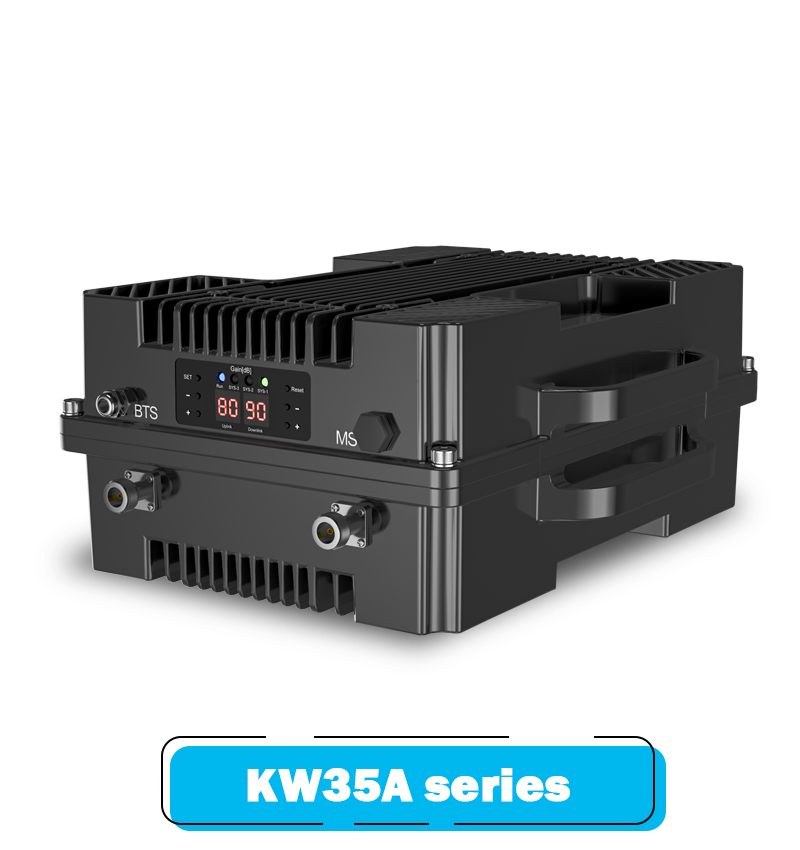

 KW35A signal booster Single Band Max Garin: 90dBOutput Power: 35dBmRipple in Band: ≤6dB

Max Coverage: 30000sqm

Size: 330*310*130mm

RF Connector: N-Female N

CDMA: 850MHZGSM: 900MHZDCS: 1800MHZ

WCDMA: 2100MHZ

Dual Band CD: 850+1800MHZDW: 1800+2100MHZGD: 900+1800MHZ

GW: 900+2100MHZ

Triple Band CDW: 850+1800+2100CGD: 850+900+1800CGW: 850+900+2100

GDW: 900+1800+2100

DWL: 1800+2100+2600

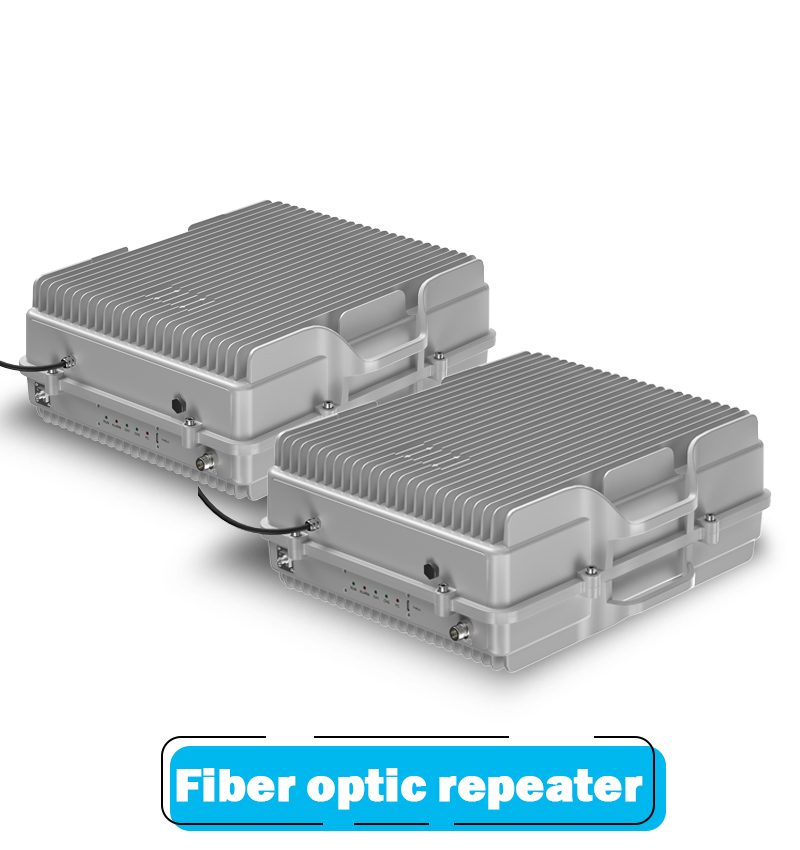

 fiber optic repeater 5 WATT(Single/dual/triple band) Max Garin: 95dBOutput Power: 5W CDMA: 850MHZGSM: 900MHZDCS: 1800MHZ

GD: 900+1800MHZ

GDW: 900+1800+2100MHZ

10 WATT(Single/dual/triple band) Max Garin: 100dBOutput Power: 10W
20 WATT(Single/dual/triple band) Max Garin: 105dBOutput Power:20W

If you are contractor of development projects and always need to solve the telecommunication problem, do not hesitate anymore and just contact Lintratek to get more information of wireless signal transmission technology.
We also supply you network solution according the network carriers (network operators) in your local places:
If you are from South America, please click here to check the suitable model of right frequency bands.
If you are from North America, please click here to check it out.
If you are from Africa, please click here to get right recommendation.
If you are from Europe, please click here to get more information about network solution with right bands.
